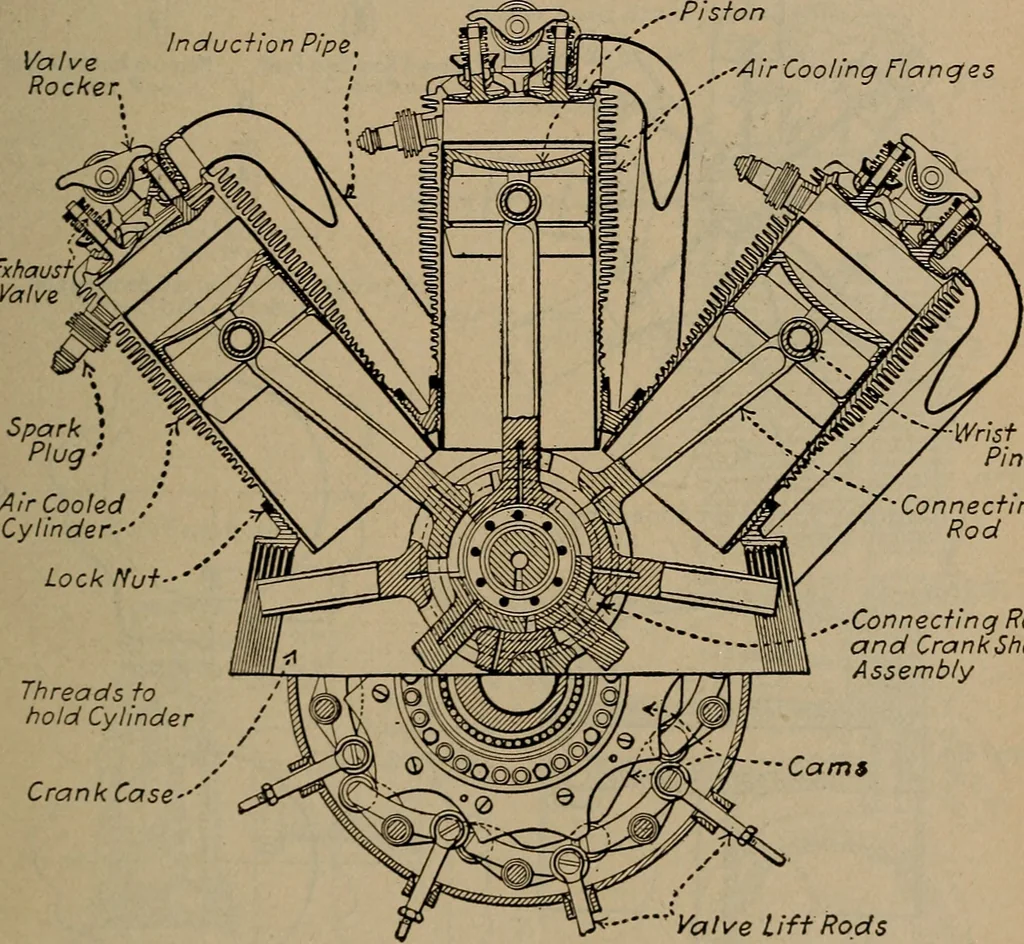

f grooves. The details of this construction can be readilyascertained by reference to explanatory diagrams atFigs. 218 and 219, A. Three of the rods which work Le Rhone Rotary Motor 499 in the groove nearest the crank-pin are provided withshort shoes as shown at Fig. 219, B. The short shoesare used… … Threads tohold Cylinder Crank Case-- ConnectingRod Connecting Rodand Crank ShaftAssembly Valve Lift Rods Fig. 218.—View Showing Le Rhone Valve Action and Connecting RodBig End Arrangement. and actuate the pistons in cylinders numbers 3, 6, and 9.The three rods that work in the outside grooves have…
