Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 500

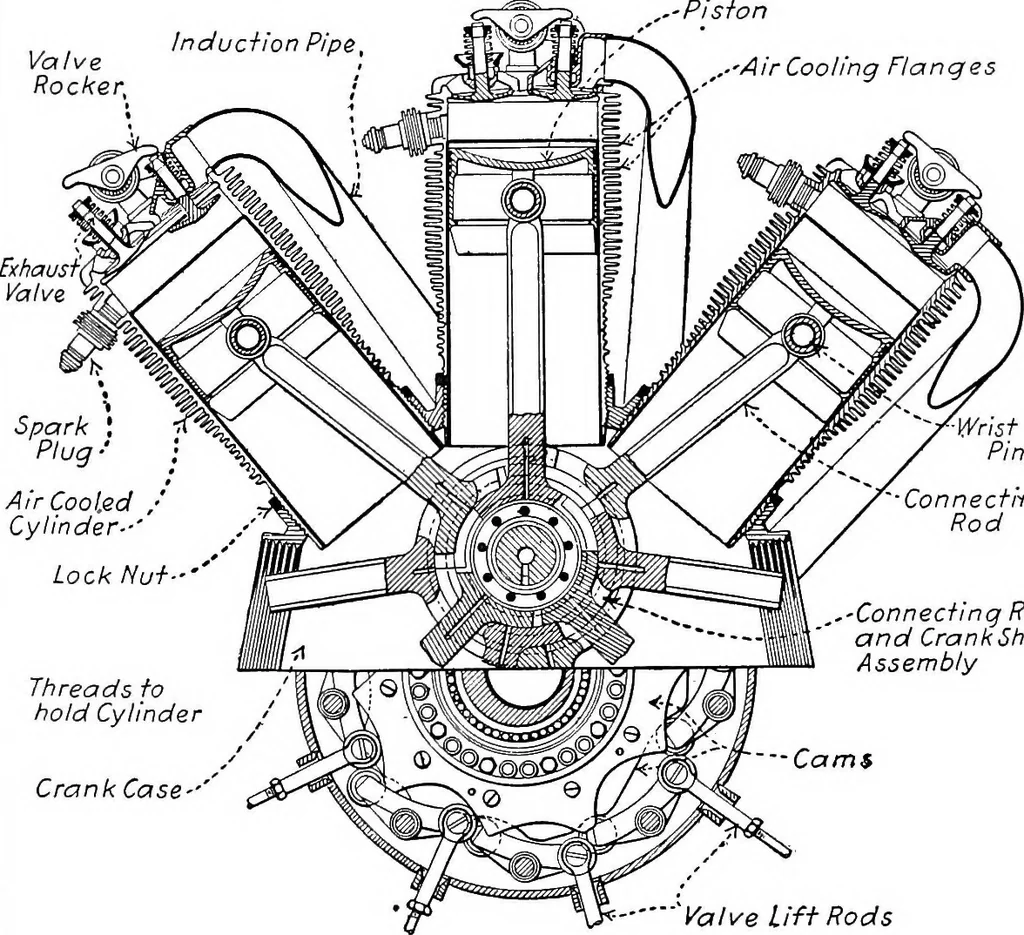

tails of this construction can be readilyascertained by reference to explanatory diagrams atFigs. 218 and 219, A. Three of the rods which work Le Rhone Rotary Motor 499 in the groove nearest the crank-pin are provided withshort shoes as shown at Fig. 219, B. The short shoesare used on the rods… … Air Cooled /Cylinder-- Lock Nut- Threads tohold Cylinder Crank Case- ConnectingRod Connecting Rodand CrankshaftAssembly Valve lift Rods Fig. 218.—View Showing Le Rhone Valve Action and Connecting RodBig End Arrangement. and actuate the pistons in cylinders numbers 3, 6, and 9.The three rods that…
