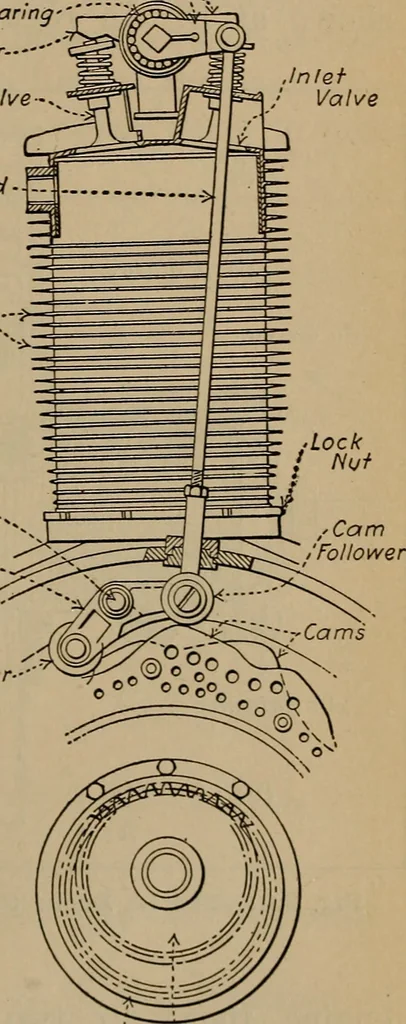

Valve Actuating Rod- Air Cooled Cylinder-*:- Fulcrum.„_ Valve Operating...Lever Fixed Cam / .CrankShaft Follower-- H HFI … I Cam Plate SupportingBall Bearings Internal PinionInternal dear Fig. 220.—How the Cams of the Le Rhone Motor Can Operate Two Valveswith a Single Push Rod. 502 Aviation Engines The fuel is pumped to the spray nozzle, the opening inwhich is controlled by a fuel regulating needle havinga long taper…
