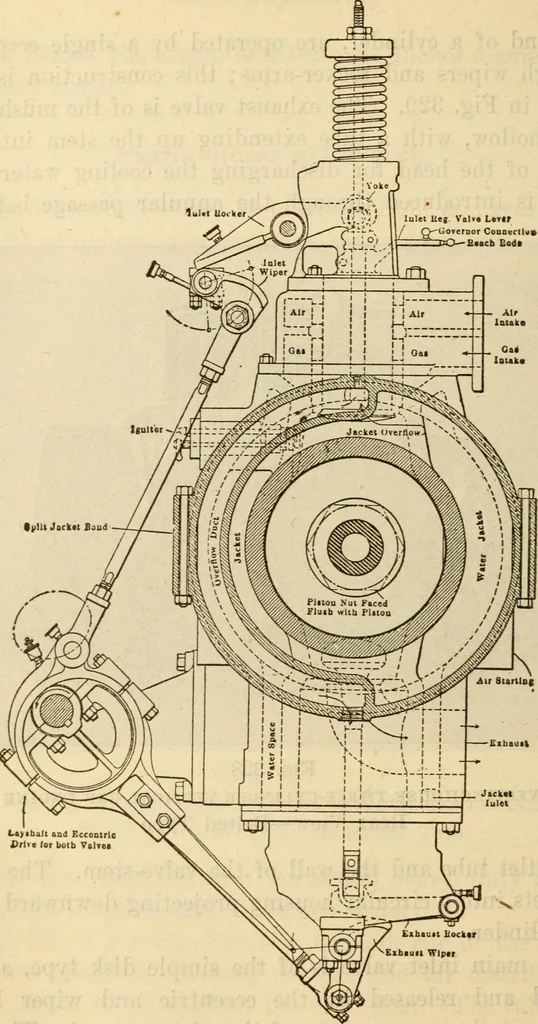

Fig. 328 westinghouse three-cylinder vertical gas engine Rear View—Belted Type the outlet tube and the wall of the valve-stem. The valvecage sets into a circular housing projecting downward fromthe cylinder. The main inlet valve is of the simple disk type, and isopened and released by the eccentric… … I^iG. 329 VALVE GEAR, WESTINGIIOUSE GAS ENGINE Westinghouse Gas Engine IIZ which controls tlie quantity of air and gas admitted^ thisbeing under the control of the governor. It is not shownin Fig. 329^ but the connection for the governor rod isshown. The cylindrical valve fits closely in the bore…
