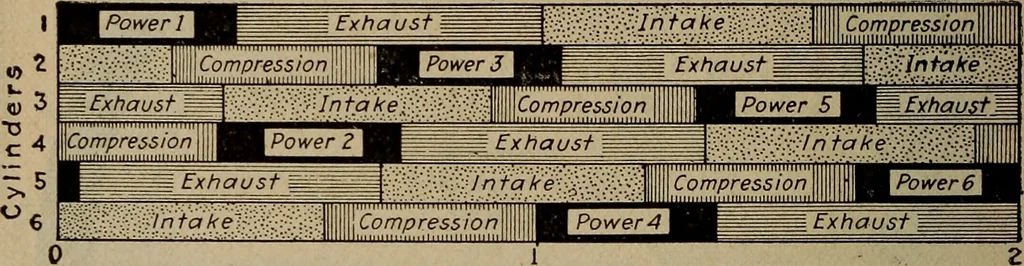

sthat the suction stroke corresponds to a crank-pin travelof two hundred degrees, while the compression stroke ismeasured by a movement of but one hundred and fiftydegrees. It is common practice to open the exhaust valvebefore the piston reaches the end of the power stroke sothat the actual… … Revolutions Fig. 28.—Another Diagram to Facilitate Understanding Sequence ofFunctions in Six-Cylinder Engine. time for the valves to open and close, the dimensions ininches given are measured on the fly-wheel and apply onlyto a certain automobile motor. If the fly-wheel weresmaller ten degrees…
