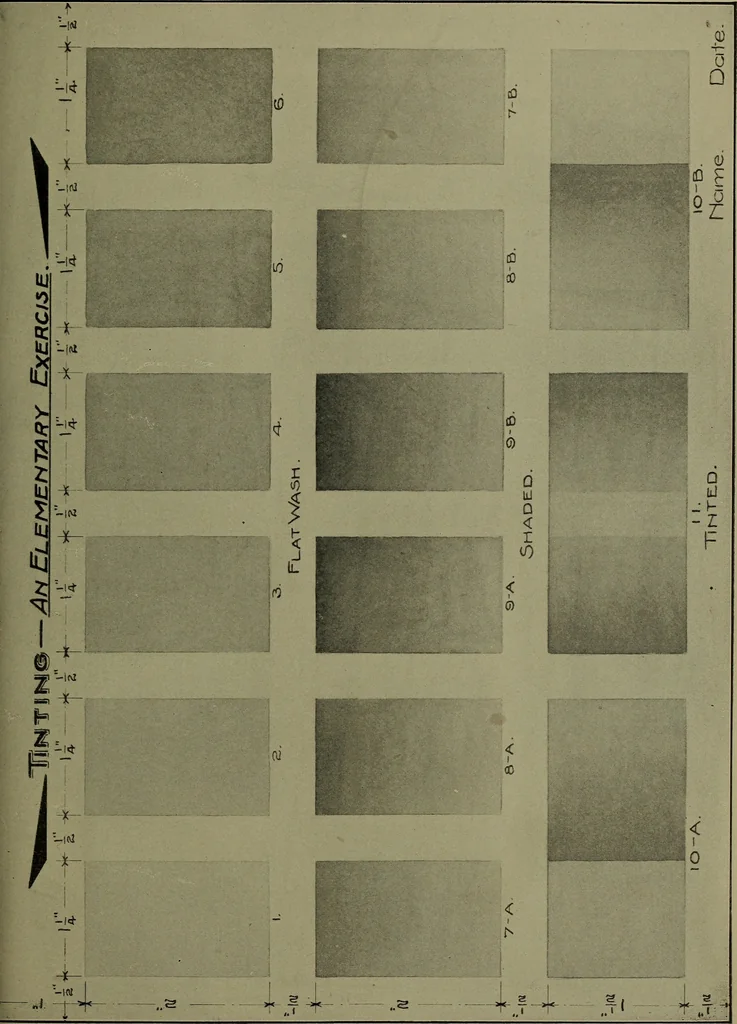

surfaces. To wash Fig. 1, begin on the left with the proper tint anddraw it out to the right, washing entirely across the rectangle—do not attempt to define the center edge; when dry, begin atthe center with the proper tint and draw it out to the right. For2, flat wash the parallel face and when… … 2i8 MbCHANICAL DRAWING. at the left, draw out the tint to the right and entirely across the rect-angle; when dry, begin at the right side and draw the tint tothe left. For 5, flat wash the flat surfaces first, then shade as in 4. The next row, representing end views of the figures in thetop row,…
