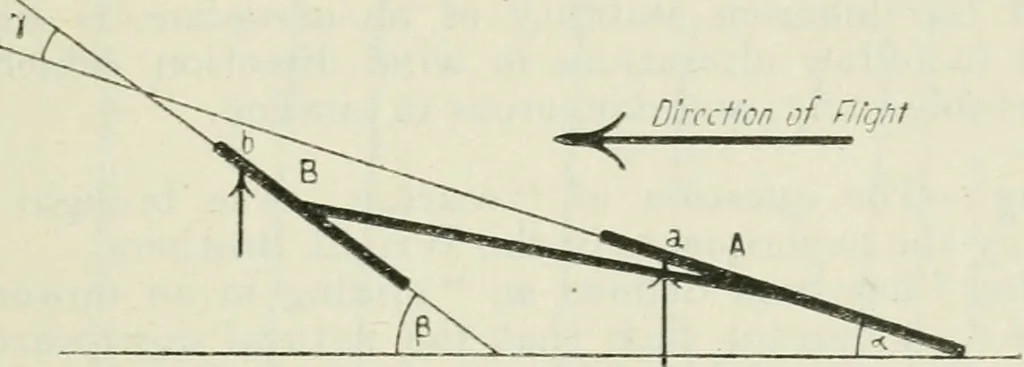

dently, DIV. Il] STABILITY 39 by increasing the angle of incidence of the side which tends tocome down. Stability by Longitudinal Dihedral Angle The sketch shows an exaggerated condition in order to add clear-ness to the figure. Total pressures are proportional to A and B. Resultant pressure = R -… … <- y a. Angle of incidence of rear plane (A)./3. ,, ,, leading plane (B). a. Centre of pressure on rear plane (A).h. ,, ,, leading plane (B). y. Angle between leading and rear planes. Since a and j8 are small, the pressures per square foot are pro-portional to a and (3. This will mean that the…
