Bamboo work; comprising the construction of furniture, household fitments, and other articles in bamboo (1901)
Hasluck, Paul N. (Paul Nooncree), 1854-1931 · London, Paris, New York, Melbourne : Cassell and company, limited · leaf 47

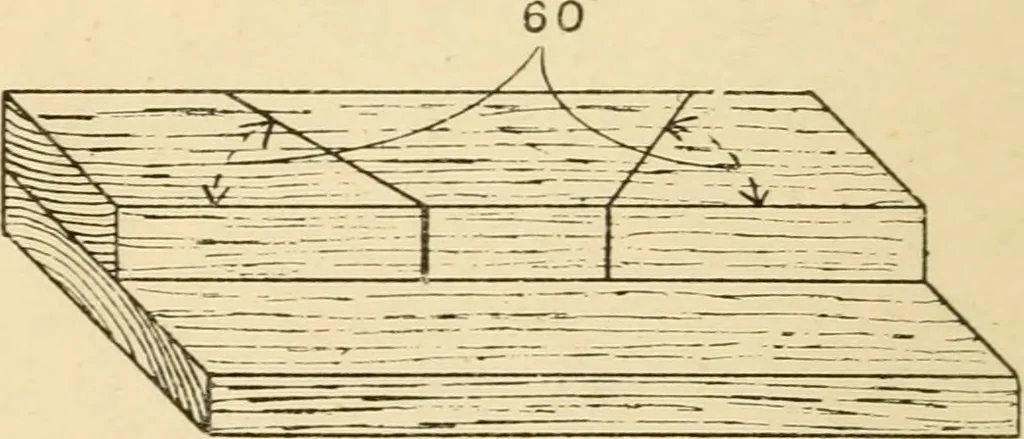

Fig-. 40.—Halved Batten for Bamboo Table Top. simplest way of cutting the mitres is to con-struct a mitre block as shown by Fig. 41, having itssaw kerfs at an angle of G0°, as indicated. < It is onlyin the angle of the saw kerfs that this block differsfrom the one shown by Fig. 8, p. 23. The… … riof. 41.—Block for Hexagonal Joints. The table top is \ in. thick and 1 ft. 9 in. square out-side, with the corners chamfered and a hollow cutin each side, as shown by Fig. 43, an alternativedesign for the top being shown in the half-plan, Fig.44. The sides are fitted with strips of jo-in.…
