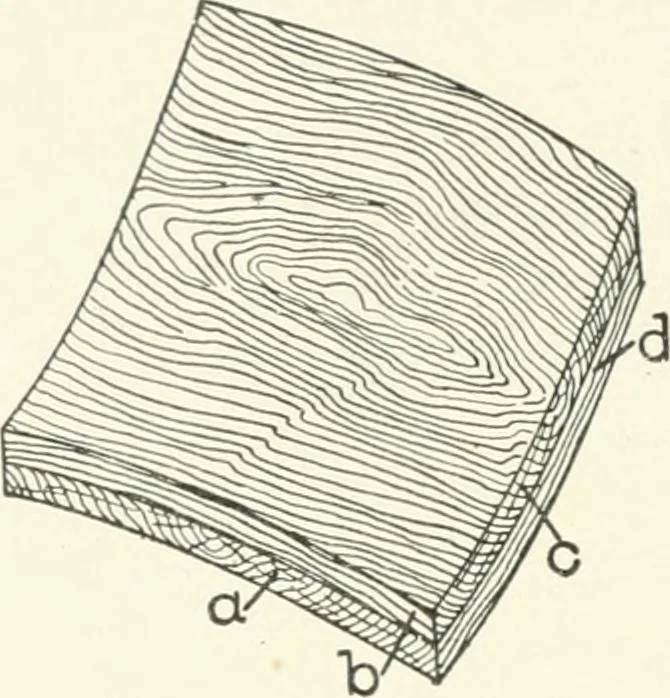

een glued and dried, will be tosome extent as shown in Fig. ;>, tlie shrinkage and strain of theend grain crosswise^ of the board at <7, being sufficient to bendthe opposing thin board lengthwise of tlu^ grain at h^ whilt> on the 15 PATTEKN MAKINC^ side cd., the curve will be reversed for… … R^^^s? 7A \i/f/^^^m4^^^^^^^^^ Fie. 6. When thin circular disks oflarge size are to ^le glued up forpatterns of any kind, the strongest,stiff est, and most satisfactory re-sults will be obtained if the piecesFig. 5. are fitted and glued tangentially to the hub or other center or opening in the disk,…
