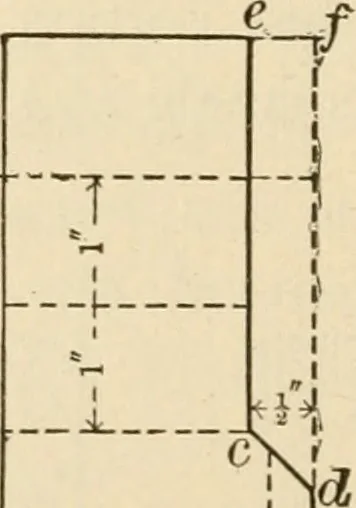

ved; thegroove, or plow, which is to receive the panel, as shown ata, Fig. 215 ; the beads /,/, and the mitered corner cd, whichallows the parts to be plowed and beaded as shown, withoutaffecting the mortise-and-tenon joint. Follow the dimensions, and line for the mortise and tenon asin the… … * 1\ i c- t £j \— -—\--rr— j d j( 1 - , (1 * 1 a i \* t -»> 1 ELEVATION. cd, and cd, by means of gauge and bevel. Cut the mortiseand the tenon, after which plow the groove a. BENCH WORK. 123 185. No special direction can be given for using the plow(85), except that it is to be used from the…
