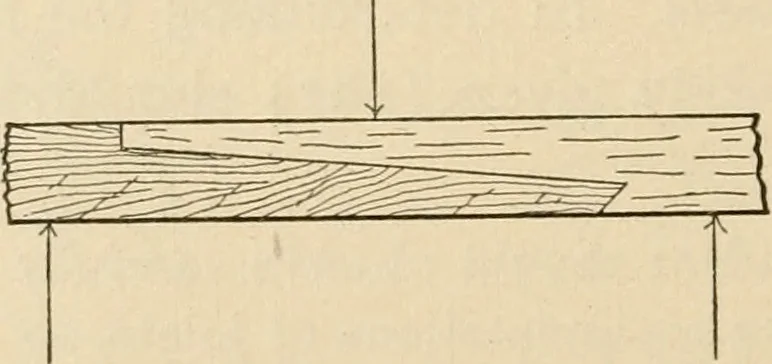

A supplies the abutting surface to receivethe strain tending to open the joint; in thickness it is equal to Fig. 231 one-third that of the timber. In practice this joint is not oftenemployed without fish-pieces. Fig. 231 shows a modificationof Fig. 235 which will serve excellently for tensional… … embody forms adapted to resisting both, as shown by Fig. 232.A single fish-piece is usually added to the lower side of the joint. WOOD CONSTRUCTION, 131 198. A scarfed joint for resisting tension and compressionmay be made as shown by Fig. 233 ; or, less complicated asshown by Fig. 234 ; or, more…
