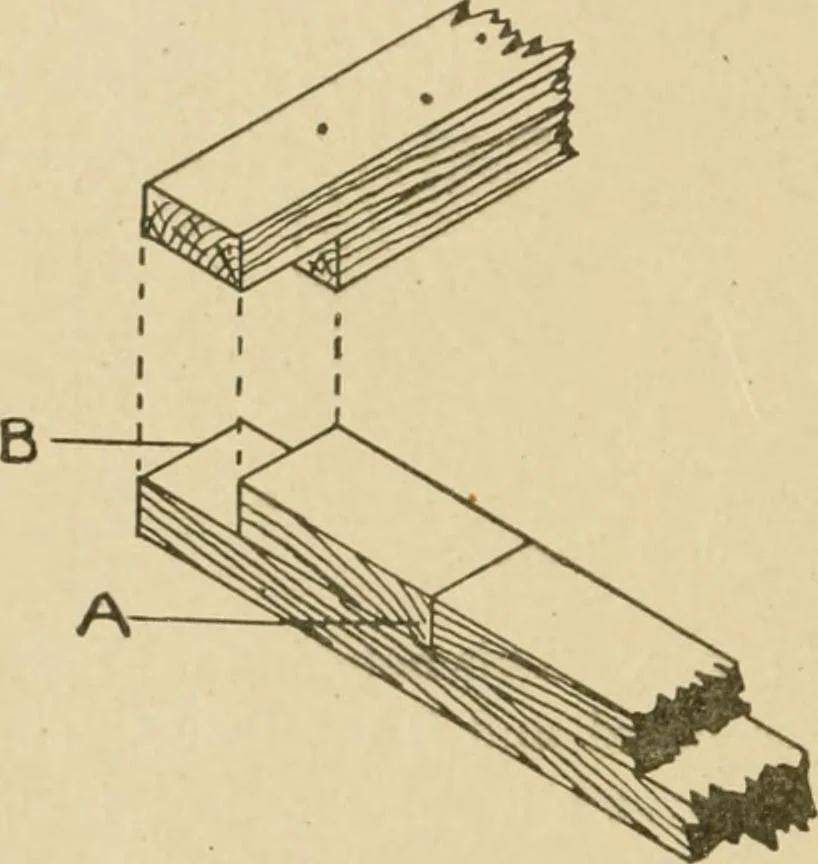

sill, girt, or plate makes an angle witha corner post, as shown at E in Fig. 52. Braces are placed so as tomake an angle of fortj-five degrees with the post, and should belong enough to frame into the corner post at a height of from one-third to one-half the height of the story. This construction… … Fig. 70. Construction at Corner, Breaking Joints. 56 CARPENTRY 49
