Bench work in wood; a course of study and practice designed for the use of schools and colleges (1905)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, New York, Ginn & company · leaf 161

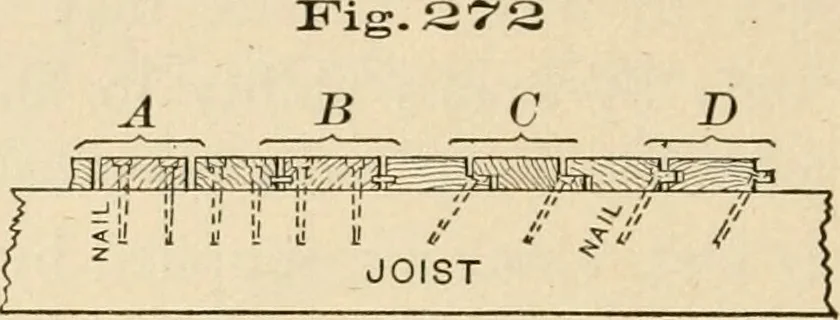

eivedby any one of them at points between supports. 222. Fig. 272 shows at A a. plain butt joint, which has noprovision against opening, and in which the boards do notsupport each other; it is really no joint at all. The samefigure shows at B, C, and D, respectively, a filleted joint, arabbeted… … Joints of this class which have no support outside of them-selves must be held by glue. 223. A Glued Butt Joint, if well made, will be quite asstrong in the softer woods as a glued matched or a gluedfilleted joint. It is difficult, however, especially if the boardsare long, to keep the two pieces…
Woodwork (Manual training)
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
