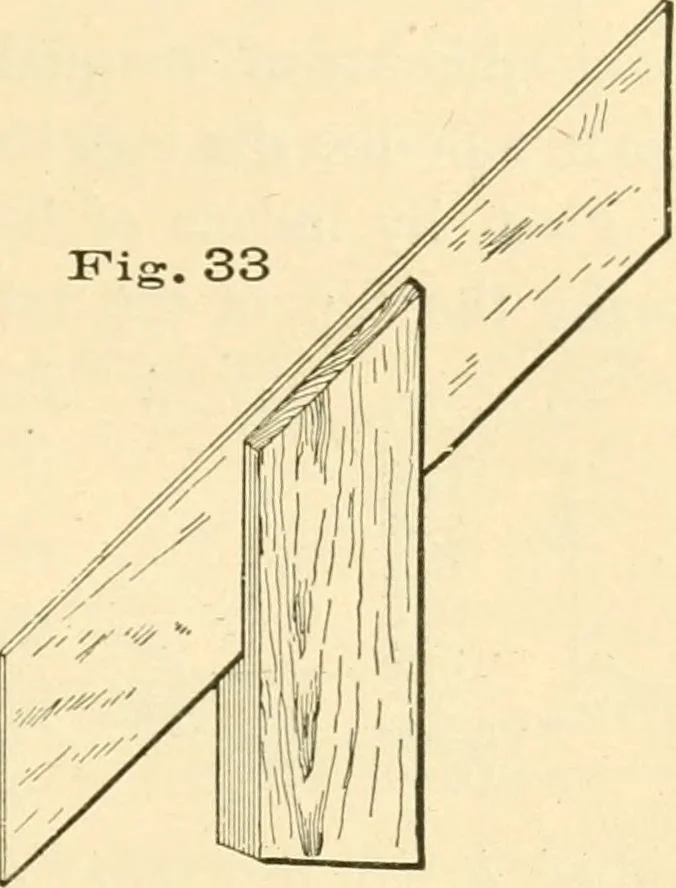

the beam; the thumb-screw C fastens it whenset. The size of a bevel is expressed by the length of its beam ininches. 24. Miter-Squares derive theirname from the purpose they are in-tended to serve. A miter in con-struction is one-half of a right angle,or an angle of 45 degrees. In the miter-square… … miter-square. . 34 25. A Combination Try-and- Miter Square is shown by Fig. 34. This, while perfect as a try-square, is trans-formed into a mi-ter-square whenthe face of thebeam AB is placedagainst the work-ing-face (119) of the material. 26. Dividers are much used in spacingand in laying off…
