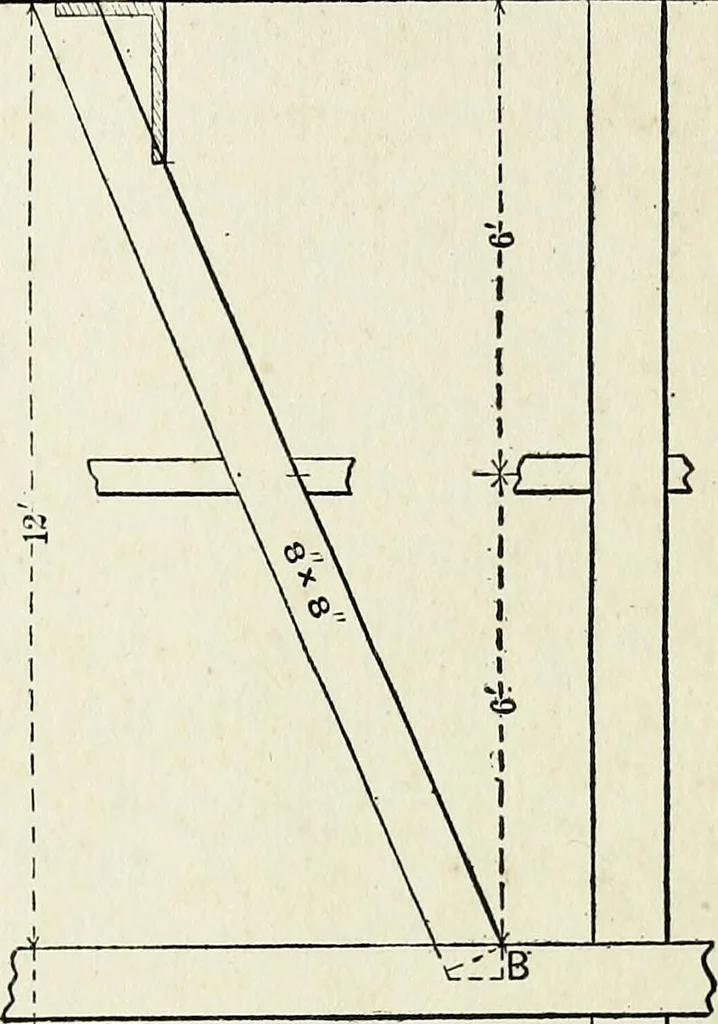

angleif it is a sawed,or from the lineif it is a hewntim-ber. Now, a lean-ing brace of the kind in point is !<-*= 6-—-*»! nothing more than fig. 125 a leaning post, and in this case the post leans 5feet 3 inches from the perpendicular. So in thesame way lay out, not from toe to toe, butfrom toe… … 166 PRACTICAL USES OF According to the foregoing argument, then, therun is not 6 feet, but 5 feet 3 inches. And weproceed to lay off the brace, using 24 inches onthe long and io}4 inches on the short blade ofthe square, and applying to the corner of thetimber, or to the line parallel with it as…
