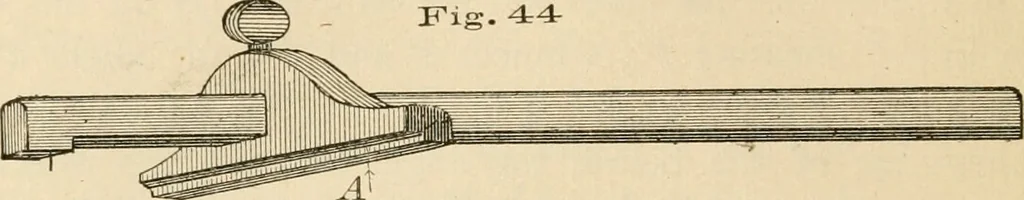

ng fastened to the beam, and b to a brass slide which worksin a groove in the beam. The spur b may be set at any dis- v,;ll,K7r— v x * * tance from a by the action ofthe screw c. The gauge may,therefore, be set to line bothsides of a mortise at the same time. 34. Panel-Gauges, Fig. 44, are for use… … 35. Cutting-Gauges, having a long, thin blade in the placeof the usual spur, are in form similar to that shown by Fig. 42.They are useful in cutting strips of thin material. 36. Chalk-Lines are very seldom used in bench work, butare often convenient in applying such work to larger structures.The…
