Bench work in wood; a course of study and practice designed for the use of schools and colleges (1905)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, New York, Ginn & company · leaf 52

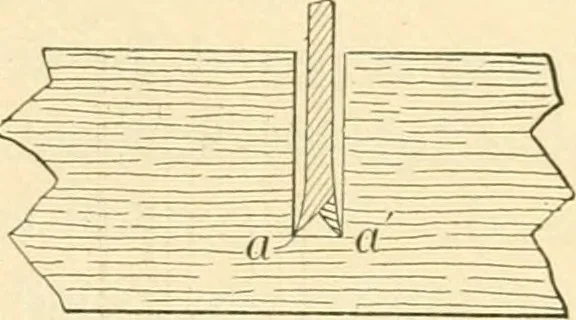

r /.Sec. E F It will be seen by the figure that the tooth terminates in a trian- BENCH TOOLS. 33 Fig. 65 … gular point; and also, that while the point a is formed on oneside of the blade, the next, a, is formed on the opposite side;thus throughout its length, the points of any two adjacent teethbeing on opposite sides of the blade. This arrangement makesthe end view of the blade show two parallel lines…
Woodwork (Manual training)
