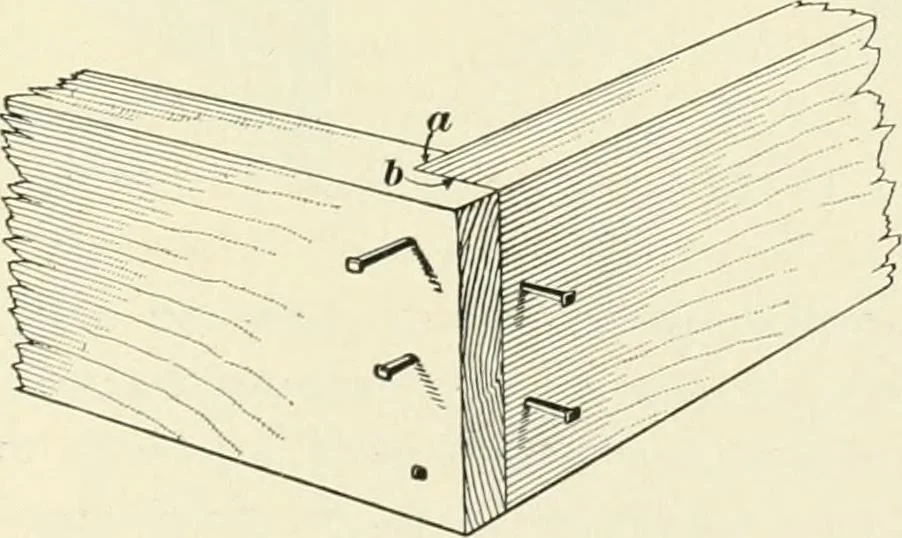

joint, T^ut causes the interior to open slightly, as indicated by the dotted lines. To obvi-ate warping, however, atongue is very essential. 8. The slKmldeicd corner, shown in Fig.;), is a joint used wherethe inside angle willalone be visible, and isIiG. 3. an improvement on the butt joint shown in… … JOINERY. 10 presents the advantages of showing no end grain as does Fig. 3, and possessesthe additional strengthsecured in the methodof joining the pieces ofFig. o. Its use, how-ever, is limited to lightwork, where no greatstrength is required,and is principally serv-iceable where a miterjoint is…
