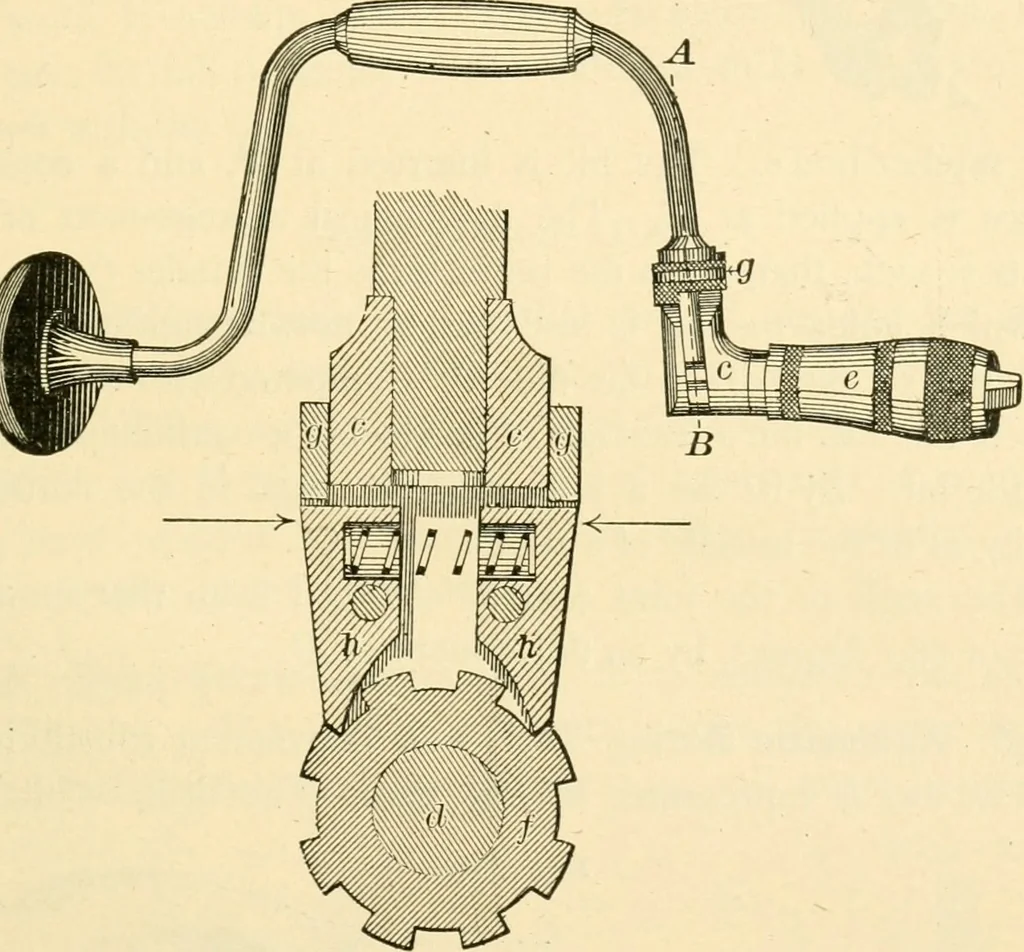

ay as the one already described. But, by turning the ringg, one of the pawls is disengaged, and the other acting alone BENCH TOOLS. 57 will move the spindle d only when the brace is moving in onedirection, the pawl simply slipping over the notches of theratchet-wheel when the motion is reversed. In… … Section A B. (Enlarged) The ratchet-brace is useful in boring holes near walls, or incorners where it is impossible to turn a common brace. The size of any brace is indicated by its swing, that is,by the diameter of the circle described by B, Fig. 119. Thebetter class are nickel-plated, and are…
