Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 596

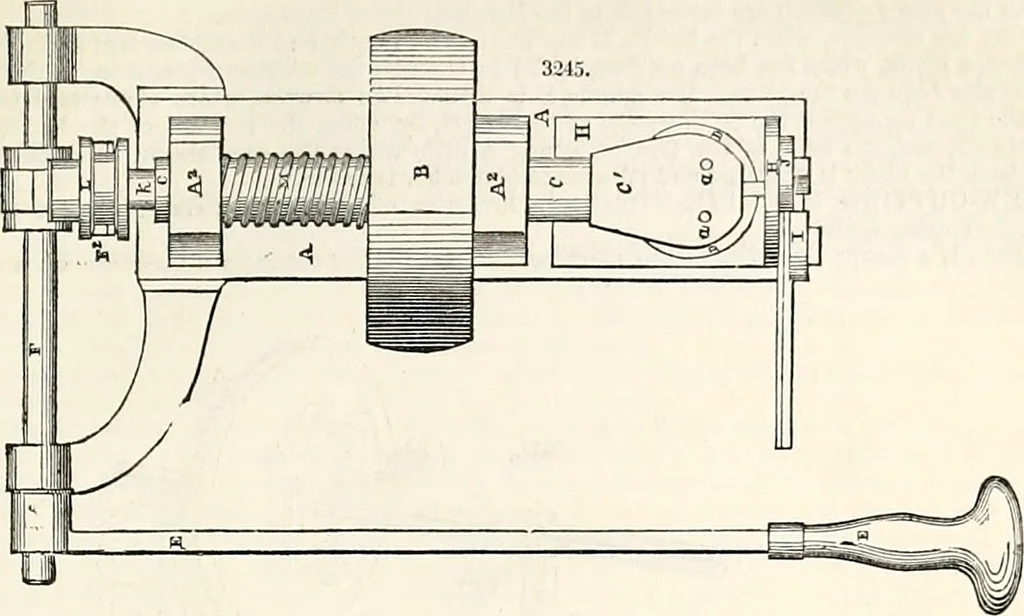

SCREWS, BURRING MACHINE FOR. 589 The part H of the adjustable sliJe, which stanJs at rip;ht angles to the part H, has on its face apiece I fastened to it by a screw c, and this hoUIs the tool G, by which the burs are to be removed fromthe under side of tlie heads, the proper form being given to the… … to the bevel of the head. J is a steel plate, in which there is a countersink <1 to admit the liead of Ihescrew to come into contact with the tool G. Where the tool is to act upon the head the steel plate J iscut away, as shown at e. The arbor C C is tubular, and there passes through it a…
Mechanical engineering · Mechanics · Engineering
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
