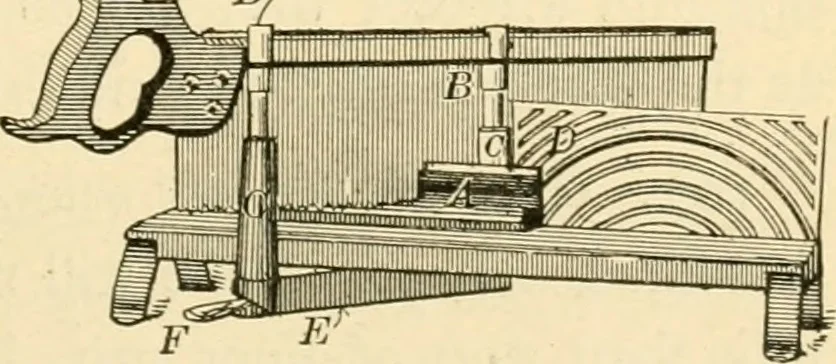

wo oblique cuts, one marked c, andthe one taken by the saw, Fig. 219. Project up the sides suchlines from the points thus fixed, as will be useful in making thecuts; the sawing is then done with the back-saw. No specialdirections are required for laying off the cut d. 105. Iron Miter-Boxes are ^^ R… … 64 BENCH WORK IN WOOD. is supported by the frame as shown, while the proper position ofthe saw is maintained by the uprights B, which, in the sawingprocess, slide down into the standards C. The saw may be setat any angle with the back of the box D, by swinging the frameE, which supports the…
