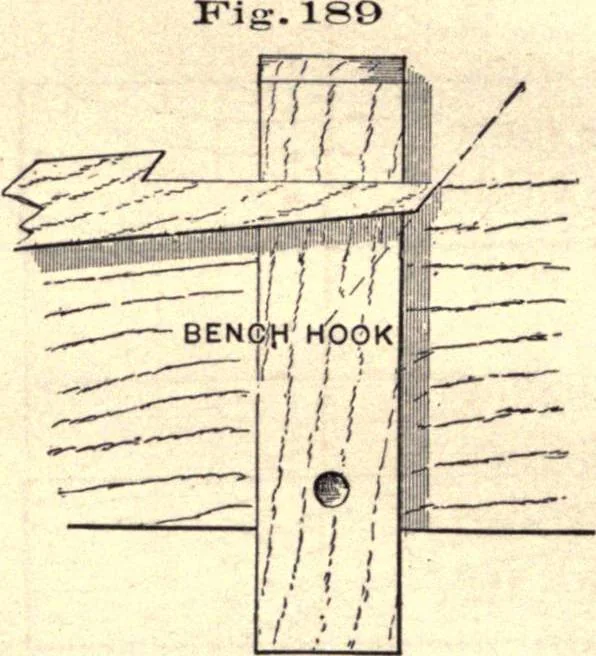

IO4 BENCH WORK IN WOOD. of its teeth, after which it may be turned into the desired di-rection b. The splayed ends dj and ik may be cut with the work onthe bench-hook, Fig. 189. By following the directions given inthe previous exercise the joint may be finished, as shown byFig. 187. … EXERCISE No. 9. — MORTISE-AND-TENON JOINT (211-215). The stock required is if x if X 16, from Exercise No. 4 \it is shown with the necessary lines by Fig. 190. The finishedpiece is shown by Fig. 191. 164. Let A and B represent the two working-faces. Fromone end of the piece, on face A, lay off line…
