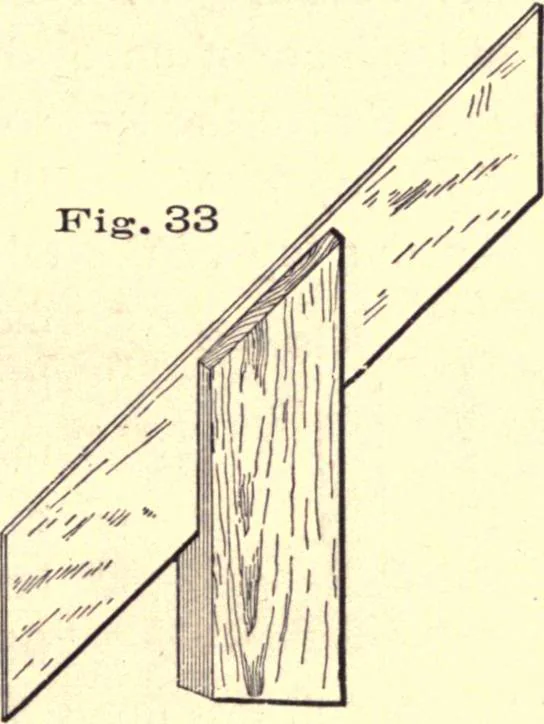

23. The Bevel, often improperlycalled bevel-square, is made up ofparts similar to those of the try-square, 1 BENCH TOOLS. Fig. 33 … as will be seen by Fig. 32. The blade is adjustable to anyangle with the beam; the thumb-screw C fastens it whenset. The size of a bevel is expressed by the length of its beam ininches. 24. Miter-Squares derive theirname from the purpose they are in-tended to serve. A miter in con-struction is…
