High school manual training course in woodwork, including cost of equipment and supplies and studies on trees and wood (1905)
Ritchey, Samuel Edward, 1866- · New York, American Book Company · leaf 49

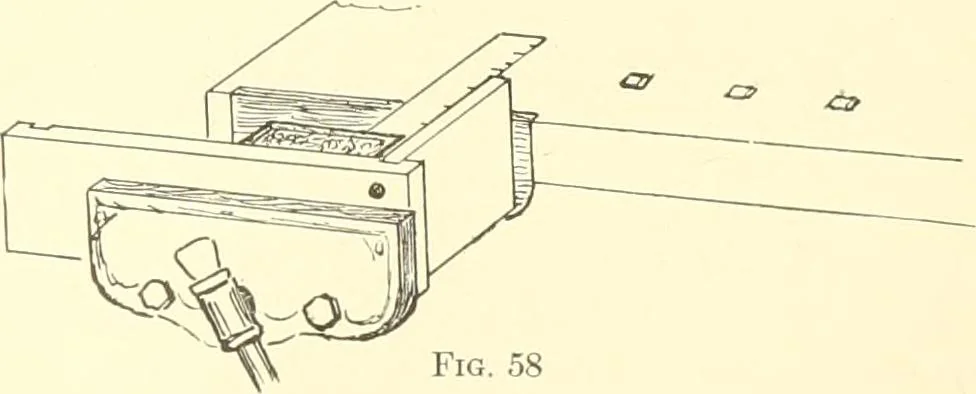

Fig. 57 Carefully smooth the bottom of groove, and try withtry-square to prove the surface. Lay out centers for screw holes on bottom face ofbase board. Insert end of rack in groove, clamp in vise with onescrew hole center showing above vise (Fig. 58). Prove … Fig. 58 48 CARPENTRY that the end of the rack is square with base withtry-square, pounding the end over gently with malletor hammer, if out of square. Bore a hole with -jV- ^^^ (^S- ^^^ *^^® shank of thebit is marked with figure 7) through and throughbase board, and up into end \ in. or less, only.…
Woodwork (Manual training) · Cabinetwork
