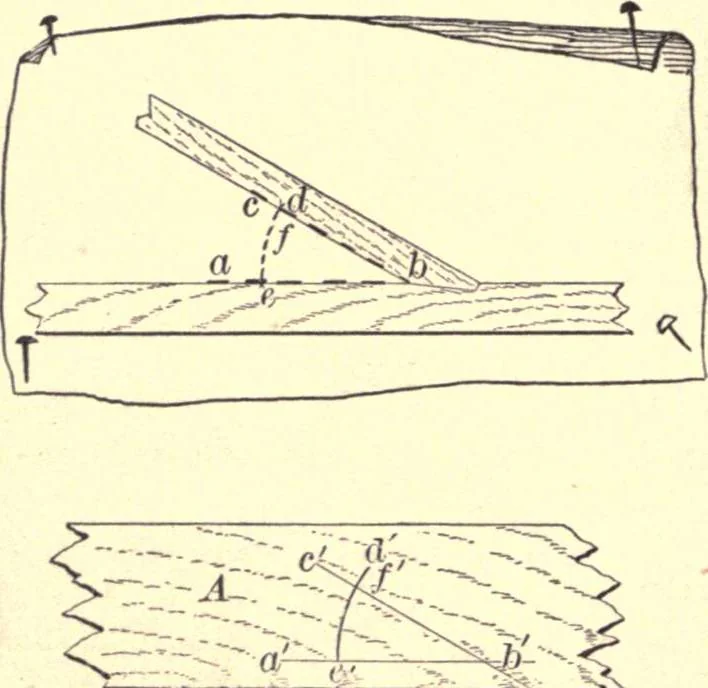

he other. 31. To set the Bevel at any given Angle. — If an attempt is made to set the bevel di-rectly from lines on paper, itwill be found difficult to de-termine when the tool agreeswith the parts of the drawing.It is better, therefore, totransfer such an angle to aboard, from the working-edgeof… … BENCH TOOLS. 19 at any convenient radius, describe from b the arc ed; with thesame radius describe from b the arc ed; set the dividers so thatwith one point on e the other will fall on/, and lay off this dis-tance on eJ, locating /; connect b and /; the angle abcwill be equal to abc. As ab is by…
