Bench work in wood: a course of study and practice designed for the use of schools and colleges (1902)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, Ginn & company · leaf 33

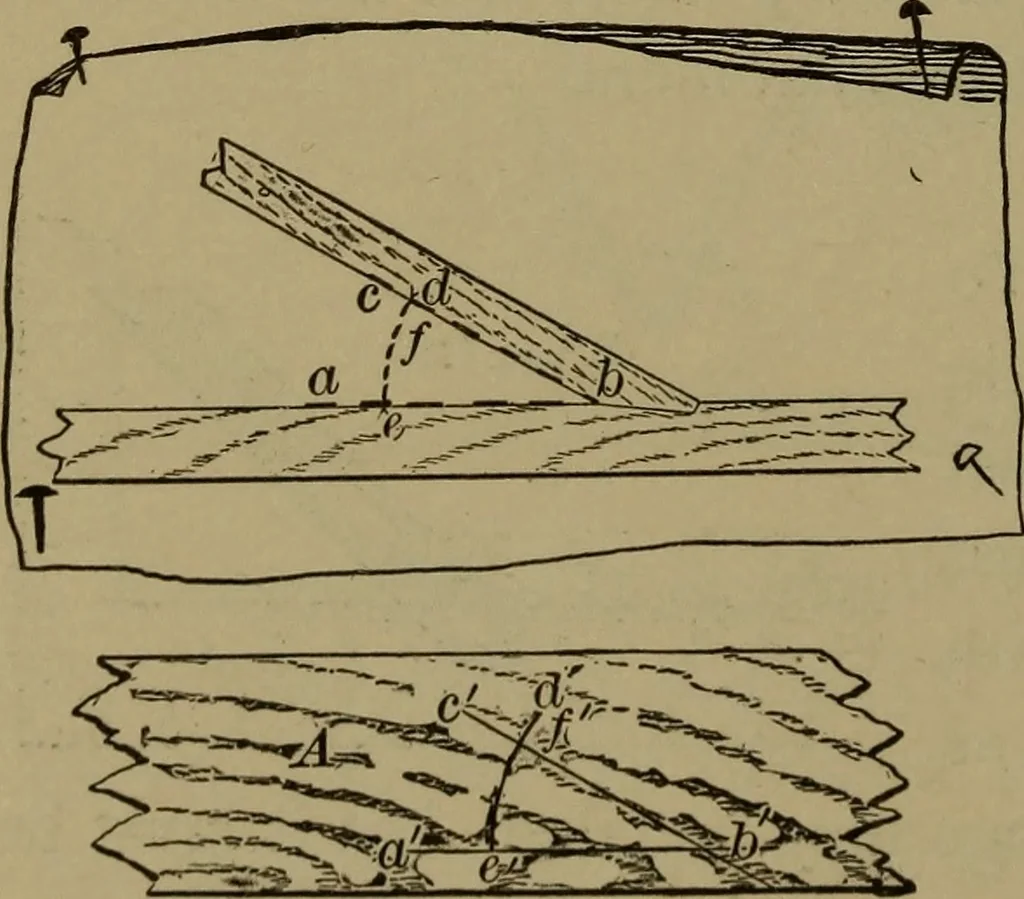

often of use in construction. 31. To set the Bevel at any given Angle. — If an attempt is made to set the bevel di-rectly from hnes on paper, itwill be found difficult to de-termine when the tool agreeswith the drawing. It is betterto transfer such an angle to aboard, from the working-edgeof which… … BENCH TOOLS. 19 Fig. 42 at any convenient radius, describe from h^ the arc e^^; with thesame radius describe from b the arc ed\ set the dividers so thatwith one point on e the other will fall on/, and lay off this dis-tance on e^d\ locating f ; connect b^ and /; the angle ^^Vwill be equal to abc,…
Woodwork (Manual training)
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
