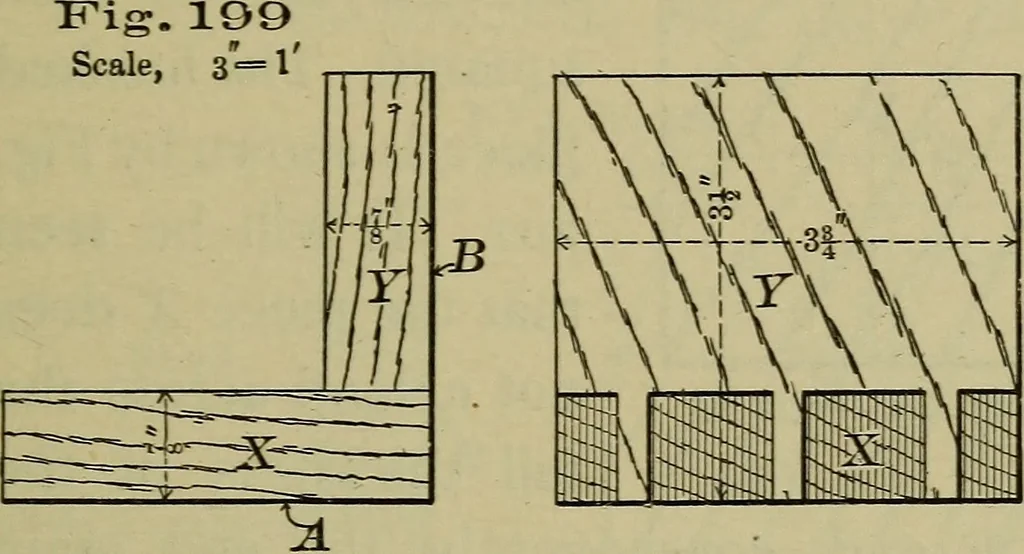

X on the working-end of V, as shown byFig. 200, taking care that the line ad on X is in the same linewith the working-face of K Holding the work in this position,and guided by the mortises in X, scribe on the end of Y theoblique lines as gk. Fig. 198. Remove Y from the vise, andwith the beam of the… … ELEVATION (B:) pins. Those on the outside marked r^ may be removedentirely with the saw; those on the inside (r), partly with thechisel, as in the case of the mortises in the piece X, 172. The joint ought to go together by light driving, and be perfectly square onthe inside betweenthe…
