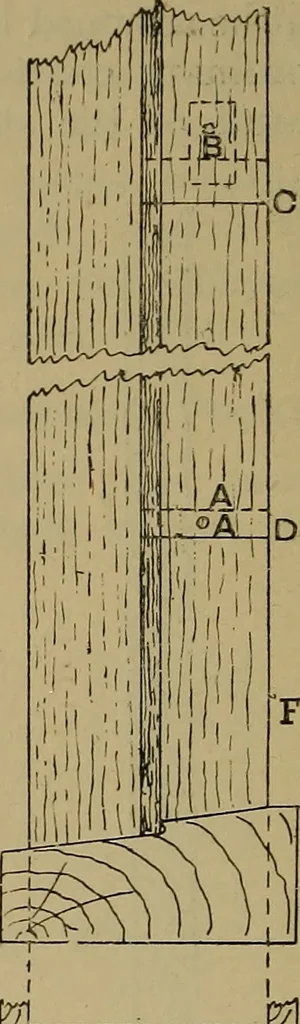

hown in dotted lines. Clean it off (tem-porarily removing screw), and run the ploughup the groove to sink it to the same depthas that on the pulley stile. If this is notdone, the parting bead cannot be drivenhome level its entire length, as it should be.More Elaborate Method.—Figs. 1373 to1375… … * Fig. 1373. |.cs^=c==^ Fig. 1374. Figs. 1373 to 1375.—Part Plan, Elevation, and Section of Pulley Stile, showing Improved Method of Cutting Pocket in Sash Frame. bottom of the opening, etc., are dealt withdifferently. The top cut is the same, but
