Bench work in wood: a course of study and practice designed for the use of schools and colleges (1902)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, Ginn & company · leaf 171

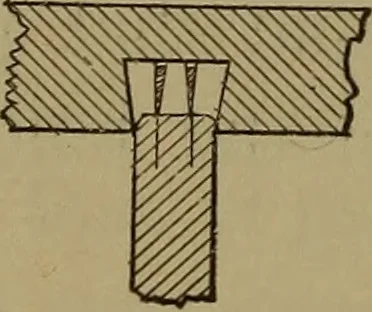

e inserted in the center,and smaller ones on each side, as shown by Fig. 302, thewedges ready for driving at A, and the joint finished at B, 251. Blind-wedgijtg is sometimes resorted to when themortise does not extend through the piece. As shown by Fig.303, the mortise is enlarged at the bottom and… … I^ig. 304 l^^ 252. Keys differ from wedges in respect of their sides, whichare parallel or nearly so. The key may be a single piece, asshown in the joint. Fig. 197, or, what is better, made as twowedges. Fig. 304. These may be put in place when in therelative position shown by A^B, after which, by…
Woodwork (Manual training)
