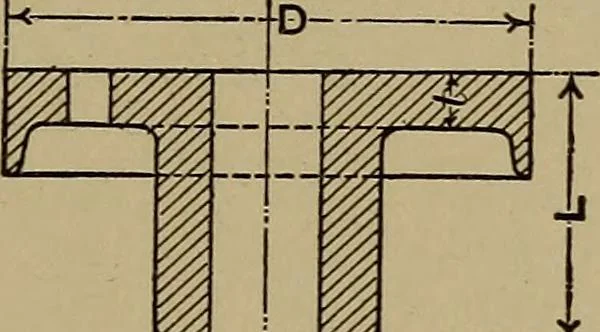

nch per foot of length. A corresponding taper is made in thedepth of the key-way in the hub. Key-ways in shafts are alwaysmade straight. For light and fine machinery taper keys are never used. SHAFTING. 369 TABLE No. 44.—Dimensions of Couplings for Shafts. (All dimensions in inches.) Dimensions of… … BEARINGS. A satisfactory rule is to make the length of the bearing forline shafting six times the square root of the diameter of theshaft. Example. What is a suitable length of bearings for a shaft of fourinches diameter ? Solution: Length of bearing = 6 X VT^= 12 inches. Some designers make the…
