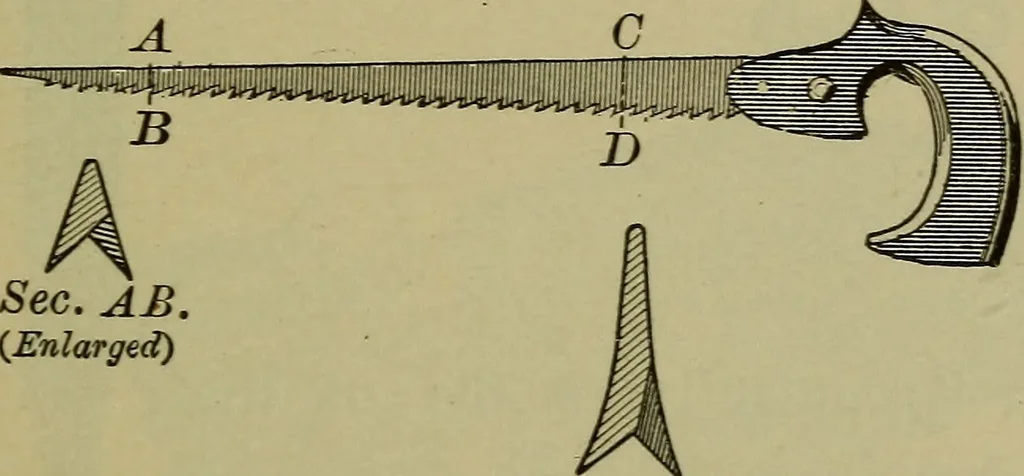

69, is intended forsawing in curved lines. Its blade is extremely thick, and the teeth are sriven an enor-mous amount of set. Seesections AB and CD,Fig. 69. If the curve inwhich it is to be used isvery small, only a shortportion of the blade ^slength next the point canbe used. With a curveof longer… … Sec. CD. (^Enlarged) 36 BENCH WORK IN WOOD. They are thus adapted for use in any direction relative to thegrain of the wood. Appliances for Saw Filing and Setting. 58. A Triangular Saw File ^ is of the form shown byFig. 71. A ^sHm saw file is represented by Fig. 72; it is B^ig. Tt F-ig. TS Fig. TS
