Bench work in wood; a course of study and practice designed for the use of schools and colleges (1905)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, New York, Ginn & company · leaf 54

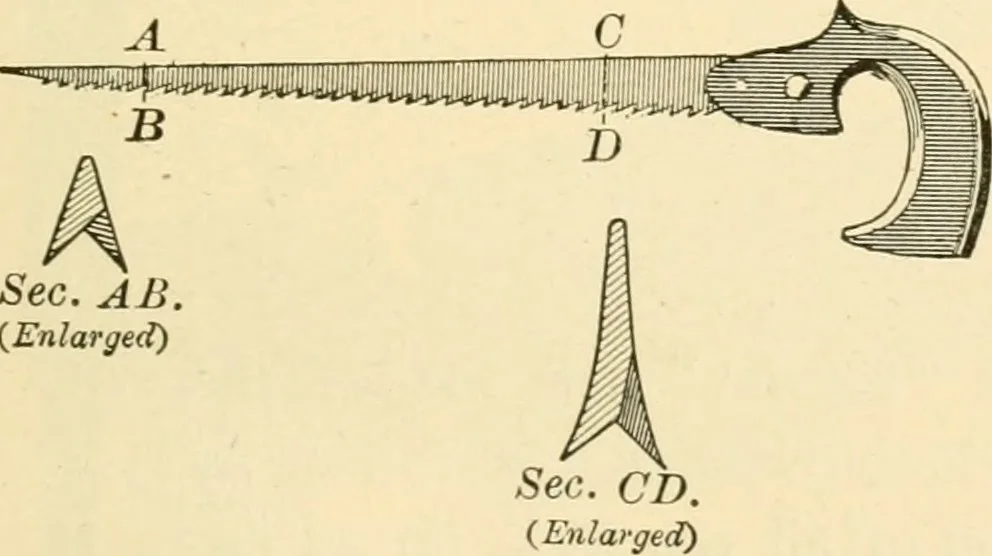

ig. 69, is intended for sawing in curved lines. Its blade is extremely thick, and the teeth are given an enor-mous amount of set. Seesections AB and CD,Fig. 69. If the curve inwhich it is to be used isvery small, only a shortportion of the bladeslength next the point canbe used. With a curve of… … ;. ro 36 BENCH WORK IN WOOD. They are thus adapted for use in any direction relative to thegrain of the wood. Appliances for Saw Filing and Setting. 58. A Triangular Saw File* is of the form shown byFig. 71. A slim saw file is represented by Fig. 72; it is Fig. 71 Fig. 72 Fig. 73
Woodwork (Manual training)
