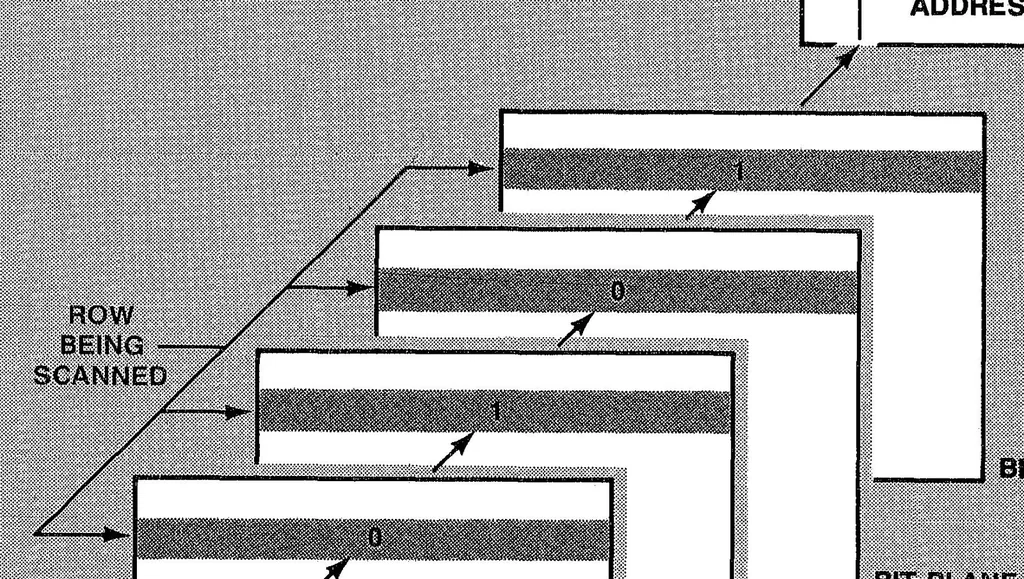

h. The number stored for each pixel in the raster memory buffer is called a color index; an index into the color map. Figure 8-4 shows a simplified block diagram of a The terminal reads color indices from raster memory, looks monochrome raster display system and Figure 8-5 shows a in the color map… … BIT PLANE 1 DISPLAY (12566)4664-17 Figure 8-4. Block Diagram of a Monochrome Raster System. 8-4 4110 SERIES HOST
