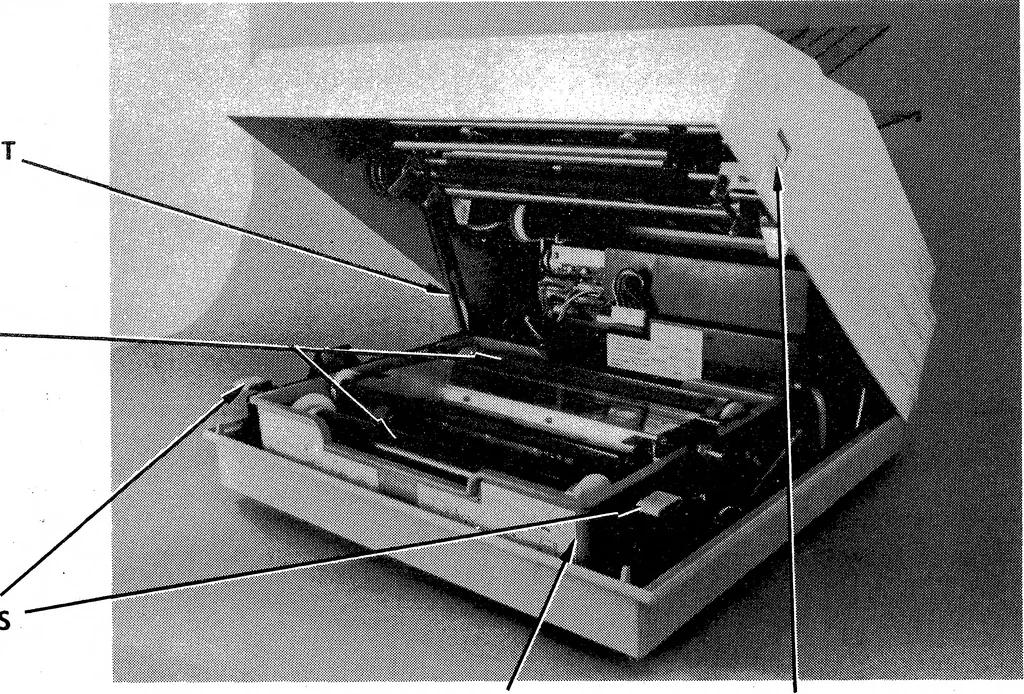

rol panel POWERlamp is not lit). 2. Pull the cover latch on the right side of the plotter chassis upand lift the top cover to access the interior of the plotter. Ensurethe cover support is locked in place (Figure 3-2). 3. Standing at the front of the plotter, pull the donor roll trayguide up and… … DONOR ROLLTRAY COVER LATCH C Figure 3-2. C2700 Thermal Plotter (Cover open) C 3-2 LOADING THE INK DONOR ROLL AND MEDIA 4. Slide out the donor roll tray and set it on a flat, clean surface. 5. Remove the old donor roll by pushing the supply roll to the rightand lifting it up and off of the…
