versatec :: 5990-01 C2700 Series Thermal Transfer Color Plotter Operator Guide Oct1986 (1919)
leaf 51

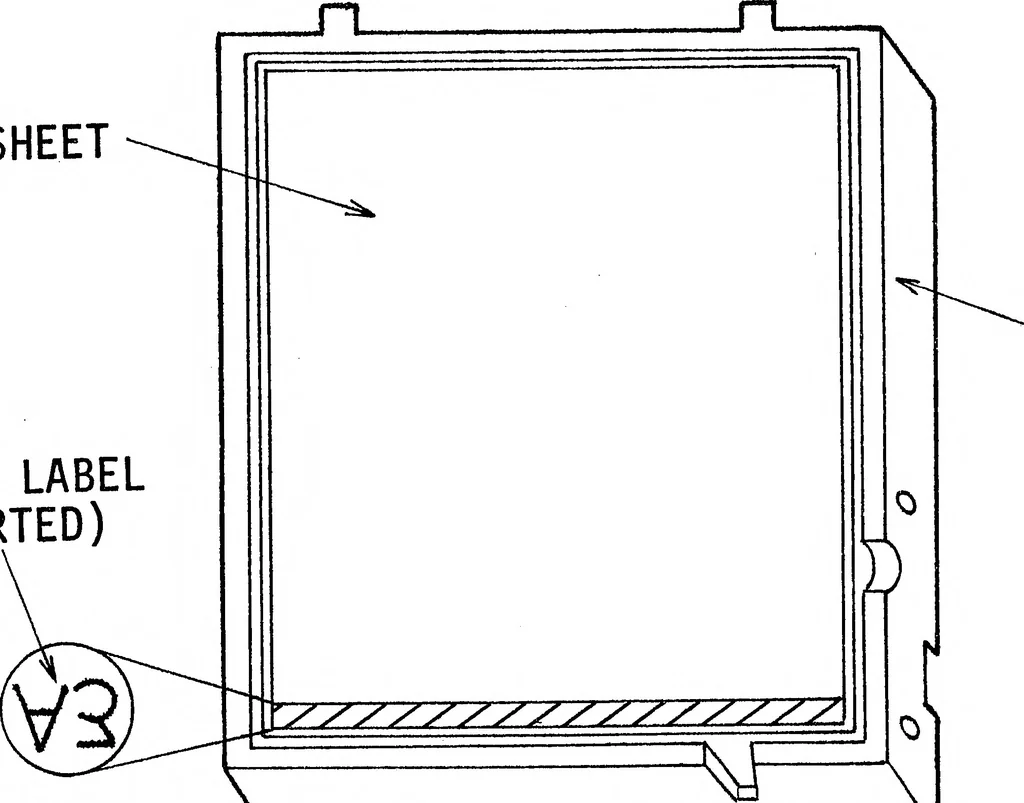

Figure 3-13. 6. The film must be oriented such that the size label (i.e., A3) atthe top of the sheet is at the bottom left-hand corner of themedia cassette (i.e., upside down and backwards). Refer toFigure 3-14. FILM SHEET A3 SIZE LABEL(INVERTED) … MEDIACASSETTE Figure 3-14. Orienting Film in the Media Cassette (A3 size) C2700 SERIES THERMAL PLOTTER OPERATOR GUIDE 3-11 LOADING THE INK DONOR ROLL AND MEDIA Install the transparency film in the media cassette. Makesure the media retainers are both sitting on top of thetransparency film. Release…
