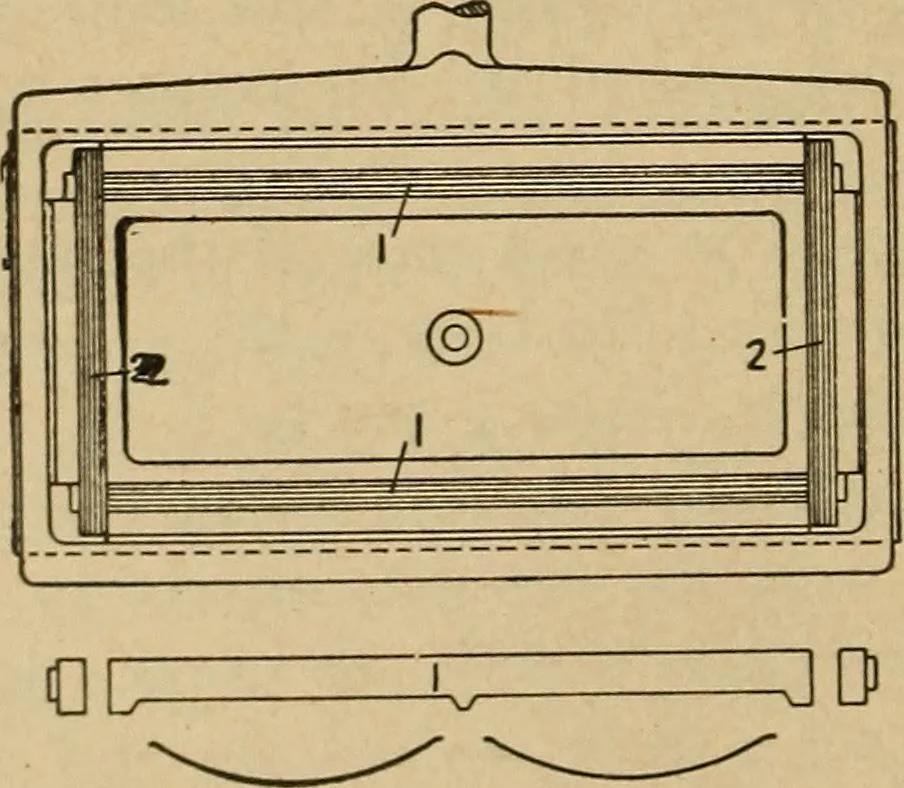

ocomotive Cylinder, with short, wide, balancedslide valve and long ports. Scale 1 to 12. 1. Cylinder body or barrel. 2. Cylinder flanges. 3. Front cylinder head. 4. Back cylinder head. 5. Stuffing box. 6. Piston. 7. Piston rod. 8. Packing rings. 9. Steam ports.10. Exhaust port. 11. Valve seat. 12.… … Fig. 201. — Top View of Valve and Yoke in Fig. 200. 1, 2, Balance strips. 36 («)] CONSTRUCTION OF THE ENGINE. 345 are conformed to the surface of the piston, and are stiffened by radialribs on the outside. Fig. 200 shows them shallow, Fig. 203 very deep.We distinguish the full or plain outer head…
