versatec :: 5990-01 C2700 Series Thermal Transfer Color Plotter Operator Guide Oct1986 (1919)
leaf 56

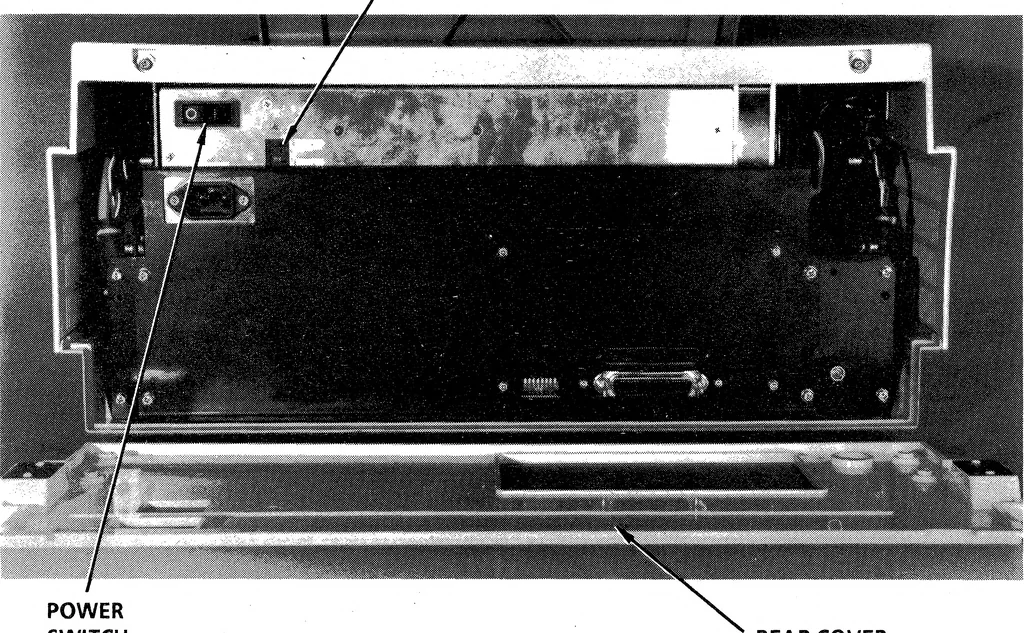

foroperation. While a plot is being run, the ON LINE indicatorremains lit. When running a plot, the plotter cannot beswitched OFF LINE, indicating the plotter is busy. Note: The INTENSITY switch (shown in Figure 4-1) on thecontrol panel is typically set to NORMAL. Once a plot hasbeen run, you may… … POWERSWITCH REAR COVER c Figure 4-2. Power Entry Panel (Rear Cover Removed) MONOCHROME PLOTTING To produce monochrome plots, you may use any of the three donorrolls available (monochrome black, 3-color or 4-color). Monochrome Black Donor Roll If you wish to plot in monochrome black, simply follow…
