versatec :: 5990-01 C2700 Series Thermal Transfer Color Plotter Operator Guide Oct1986 (1919)
leaf 57

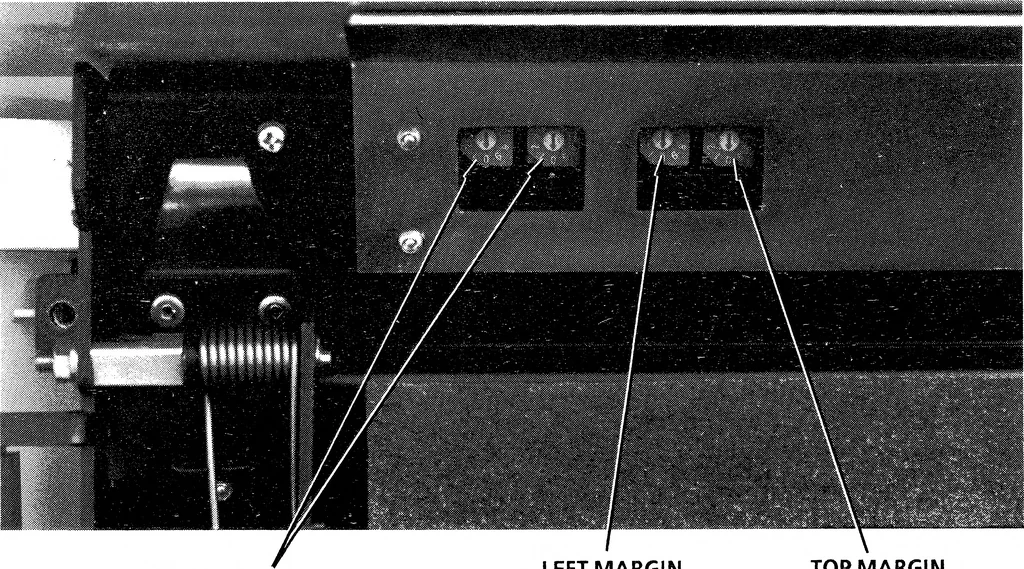

itches are normally set to zero. Thiscorresponds to a 7/8-inch (22.2 mm) top margin and a 3/16-inch (4.8 mm) left margin. 3. To set the top margin, select one of the ten positions (0 to 9) onthe rightmost rotary switch as shown in Figure 4-3. Eachdivision corresponds to approximately 0.5 inch (12.7… … (NOT USED) LEFT MARGINADJUSTMENT TOP MARGINADJUSTMENT Figure 4-3. Rotary Switch Settings C2700 SERIES THERMAL PLOTTER OPERATOR GUIDE 4-5 OPERATING INSTR UCTIONS TEST PLOT The C2700 test plot is a diagnostic self-test that helps the user orservice person verify proper plotter performance, or…
