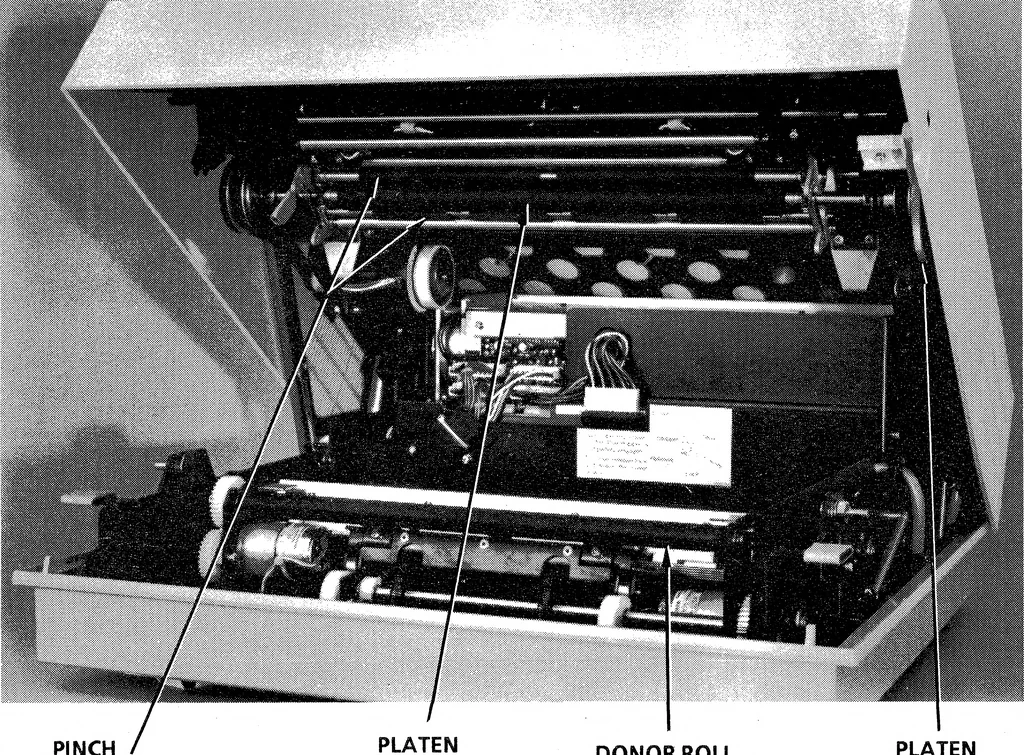

eps 1 through 6 under GettingReady (on page 5-4) prior to cleaning the platen roller. 1. Locate the platen roller inside the plotter cover (Figure 5-3). 2. Moisten a clean cloth or lint-free paper wipe with alcohol. 3. Wipe the roller back and forth along its length, using the platenwheel to rotate… … PLATENROLLER DONOR ROLLWINDING ROLLER PLATENWHEEL c Figure 5-3. Platen Roller, Pinch Rollers and Donor Roll Winding Roller c 5-6 PERIODIC MAINTENANCE Cleaning the Pinch Rollers (shown in Figure 5-3) Note: You should perform steps 1 through 6 under GettingReady (on page 5-4) prior to cleaning the…
