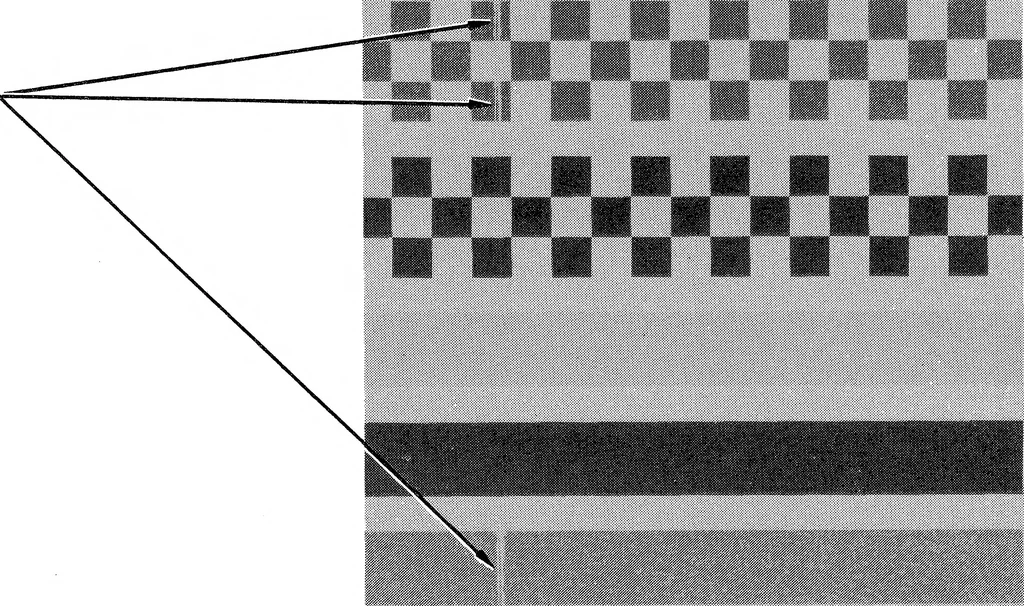

( Figure 6-2. Donor Roll Wrinkle 6-2 IN CASE OF DIFFICULTY PLOT SCRATCHES Plot scratches of the type shown in Figure 6-3 are typically due todust on the thermal printhead. To remedy this, clean the thermalprinthead as described in Section 5, Periodic Maintenance. SCRATCHES ■ m ■ ■ W u ttti ■* w~… … Figure 6-3. Plot Scratches C2700 SERIES THERMAL PLOTTER OPERATOR GUIDE 6-3 IN CASE OF DIFFICULTY PLOT HOLES Plot holes are small white or incorrectly colored spots on the plotimage, as shown in Figure 6-4. This problem may be caused by dustparticles trapped between the printhead and the donor roll…
