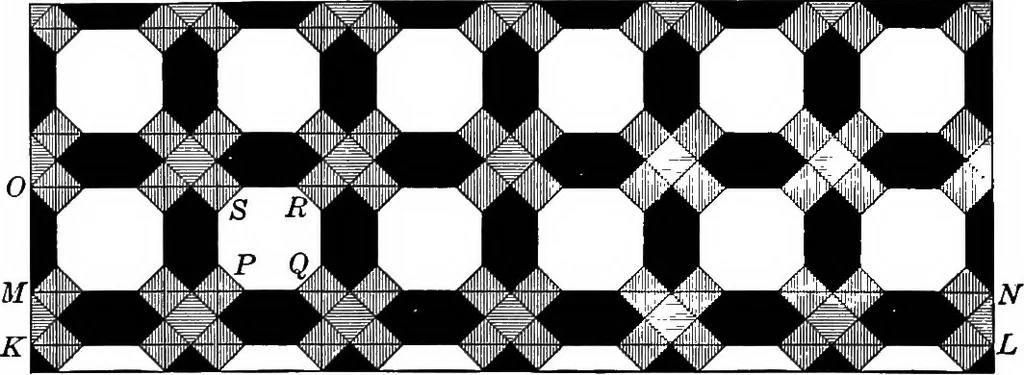

. Fig. 21.—Tiled Flooring. Scale J in. = I ft. EXERCISES 1. Find AB if one side of the larger dark square is4J inches. Ans. 9.01+. 2. Ji AB is exactly 9 inches, what is the length of one side of thelarger square? Ans. 3V2. 3. Construct the design for Fig. 21. Let each side of the largesquare… … A C E G Fig. SS.—Tiled Flooring. Moorish. Scale } in. = I ft. Calvert fI), p. 301. 27. Figure 22 is based on four sets of parallel lines. AC = 2 CE = EG,etc. MO = 2 MK. Each side of the larger square is divided into fourequal parts and diagonal lines are drawn to form the crosses and octagons.…
