Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 114

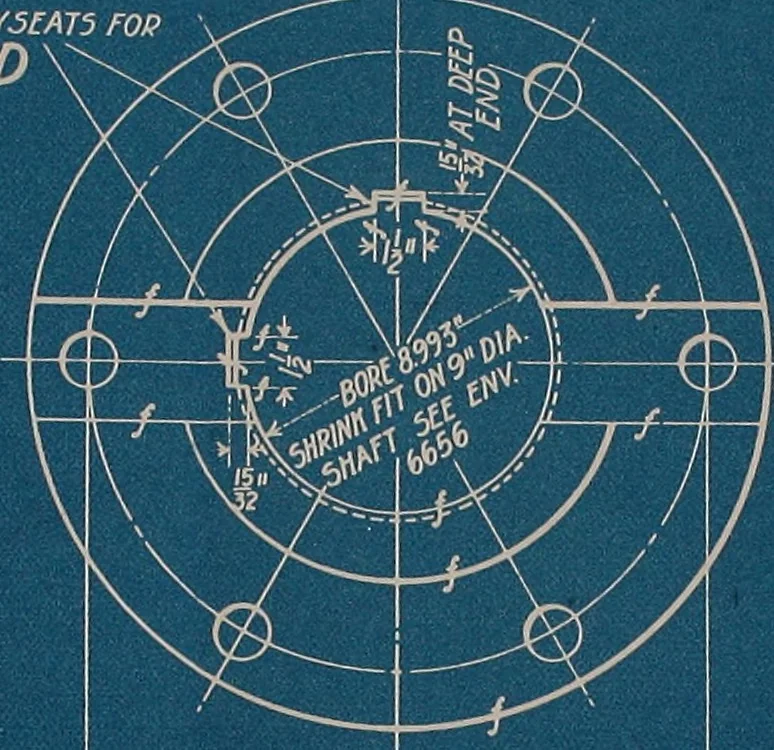

s fitted in place in theface of the flange. The width dimension shows that it is to gage.The flange coupling bolts B with their nuts C are shown by a frontand an end view. The front view shows the nut C in place,which is a common way of showing bolts and nuts. A hole isshown drilled through the… … DM. BOLT CIKLE WIW 6 H0L£5 l^DIA.DRILLED WJI6 UOlti- 5END AT ONCE TO ELECTRICAL DEPARTMENT OFALLIS CHALMERS CO., MILWAUKEE. WIS. FORTHEIR ORDEB Z-E-41:56. /I TEMPLATE FOR THEKEYWAVS AND A PIN GAUGE FOR THE BORE.LATER SEND COUPLm TO SAME ADDRESS TO BE5HRUNH ON MOTOR SHAFT. joisA • •BILL OF MATERIAL-…
