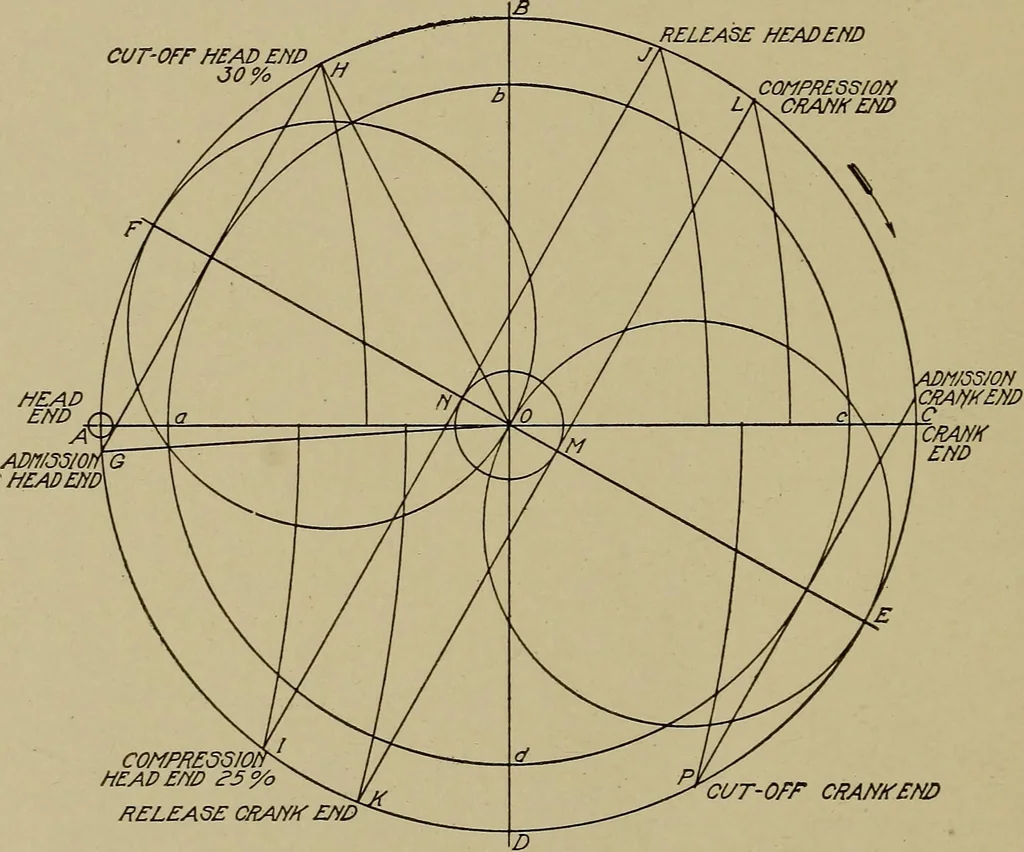

ing the remaining events of the stroke. In orderto obtain the per cents of the events of the stroke, proceed as in Example 2.The results are tabulated as follows: Steam lap Inside clearance Valve travel Angle of advance Admission on both h.e. and c.e. Cut-off c. e. Compression c. e. Release c. e.… … C0MPRE3S101HEADEND ^5<yo RELEASE CRANK END CUT-OFF CRANKEND Fig. 28. Diagram for Example 3 to Determine Admission, Compression, andRelease at Crank and Head Ends The preceding problems involve nearly all of the propertiesof the Zeuner diagram and, if completely mastered by the student,should…
