Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)

Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 13

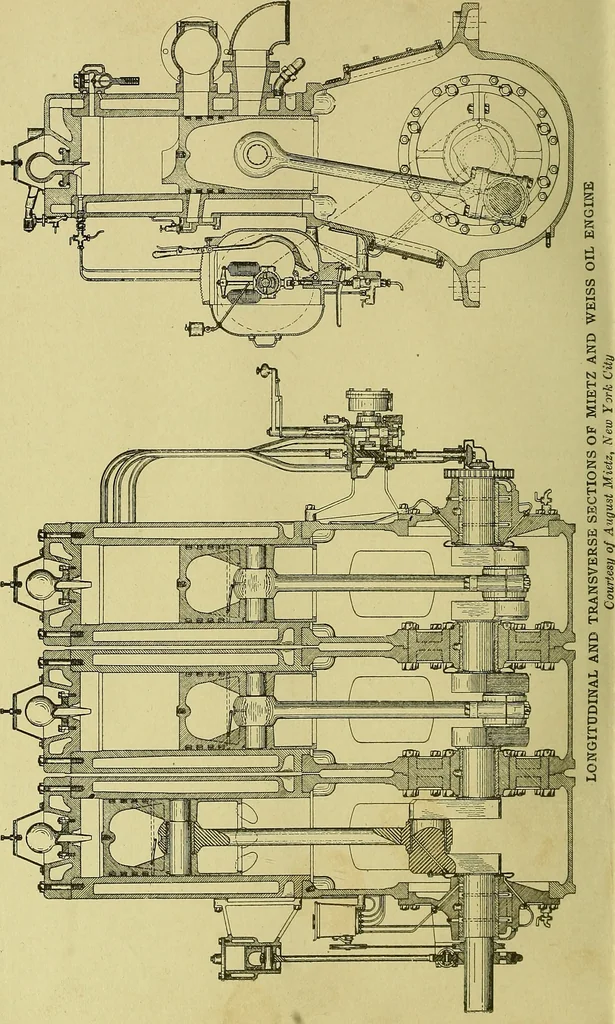

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 13 — lanes 164 Planes with cones or cylinders 169 Development of surfaces 172 Right cyhnder 173 Right cone 174 Cone 175 Regular triangular pyramid 176 Truncated circular cyhnder 177 Isometric projection 179 Isometric of cube 179 Applications of isometric projections 182 Characteristics of various… … BLUEPRINT READING INTRODUCTION Definition of Blueprint. A blueprint as used by engineers andby workmen in the various industries is a reproduction of what isknown as a icorking drawing. A working drawing, as made by thedraftsman, shows by means of lines what the piece, machine, orconstruction is,…
