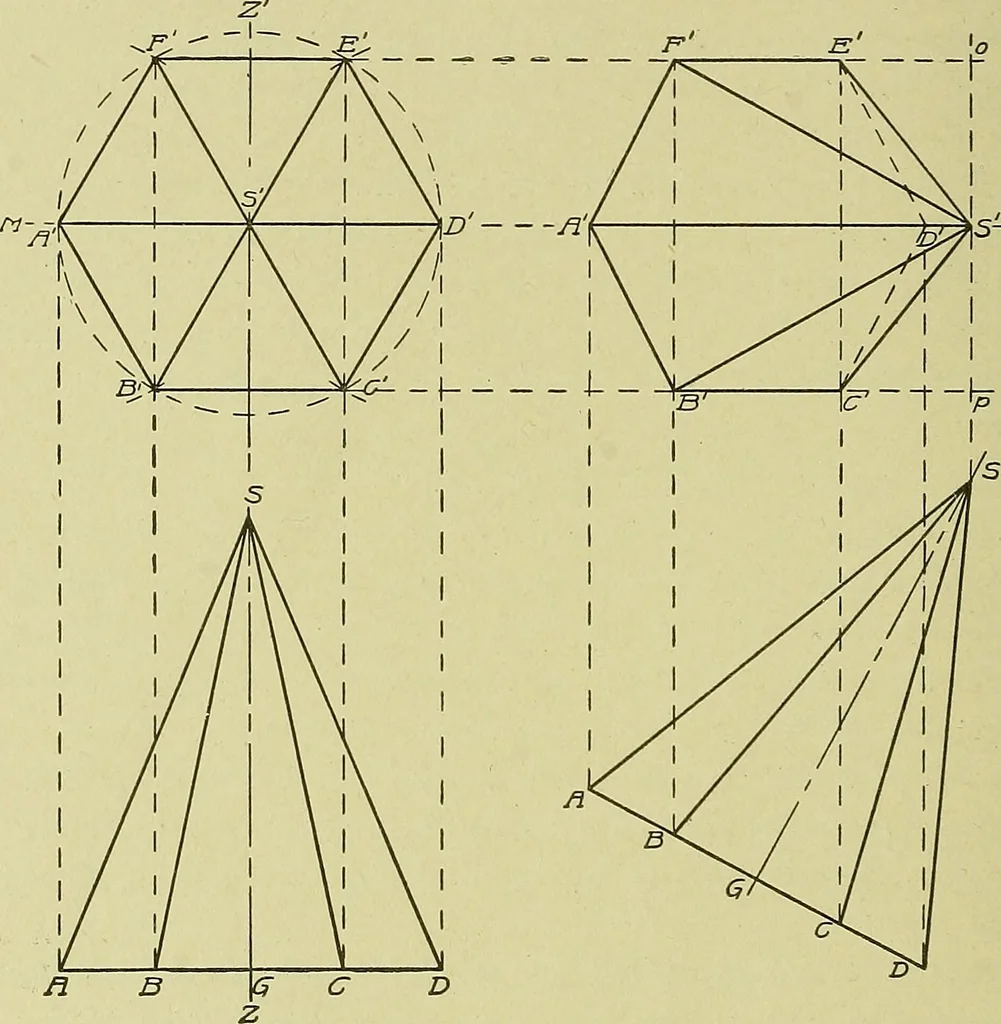

A B C D EF, 161 96 MECHANICAL DRAWING which is the base of the pyramid; and the Knes A D, B E, and CF,will represent the projections of its edges foreshortened as theywould appear in the plan. If this operation has been correctly per-formed, the opposite sides of the hexagon should be parallel… … S--M Fig. 130. Construction of Regular Hexagonal Pyramid projection of the pyramid may be easily constructed. Since it isdirectly under the plan, it must be projected vertically downward;therefore, from each of points A, B, C, D, drop perpendicularsto AD, the base line of the pyramid in the…
