Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 267

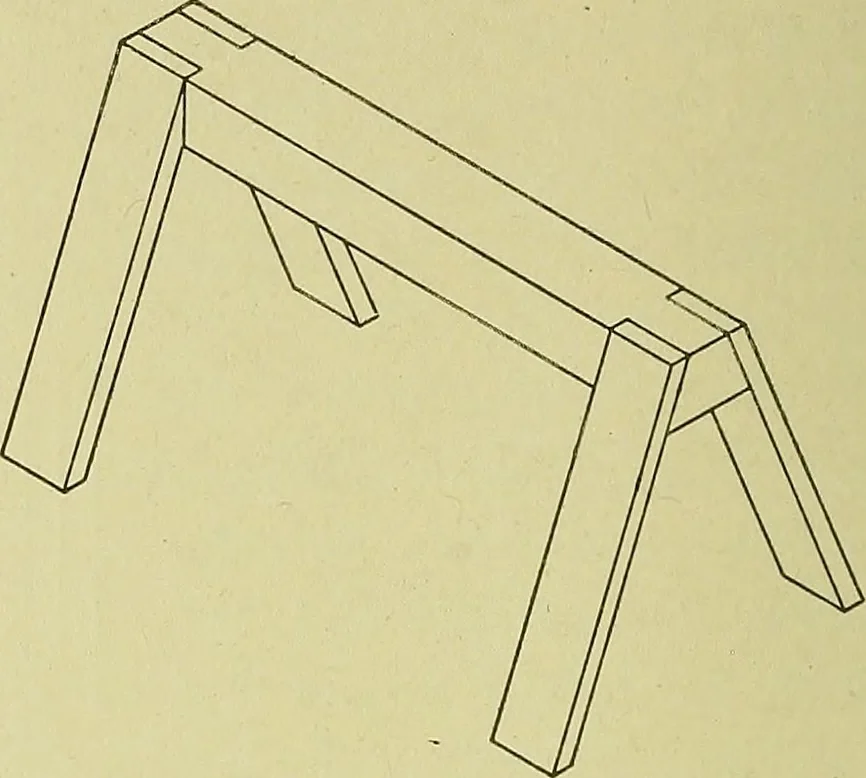

Fig. 167. Isometric of a Carpenters Bench 187 122 MECHANICAL DRAWING vertical height taken from the elevation locates the isometricof the point. … Fig. 168. Plan and Elevation ofSawhorse Fig. 169. Isometric of Fig. 168 In like manner all the corners of the pyramid, including theapex, are located. The rule is, locate first in isovietric the horizontal
