Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 268

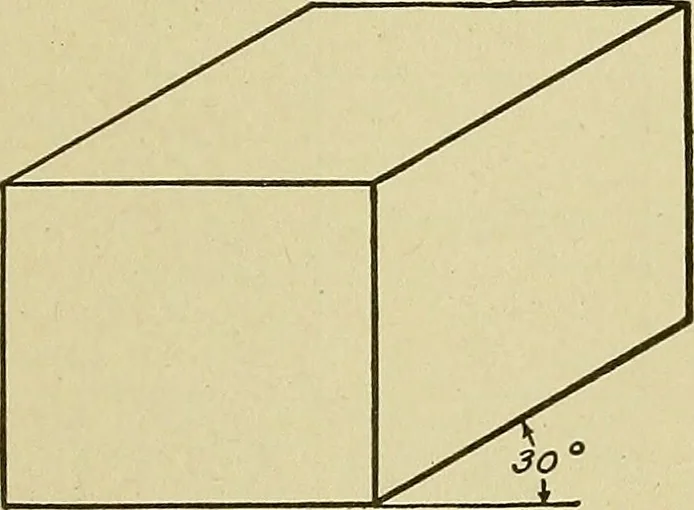

educed fromorthographic projection, as is iso-metric. Characteristics of Method. Inoblique projection all lines in thefront face are shown in their truelengths and in their true relation toone another, and lines which are per-pendicular to this front face areshown in their true lengths at anyangle… … Fig. 174. Oblique View of Cube at 30Degrees 189 124 MECHANICAL DRAWING possesses some advantages over the isometric, as, for instance, in therepresentation of circles, as any circle or curve in the front face isactually drawn as such. Fig. 174, Fig. 175, and Fig. 176 show a cubein oblique…
