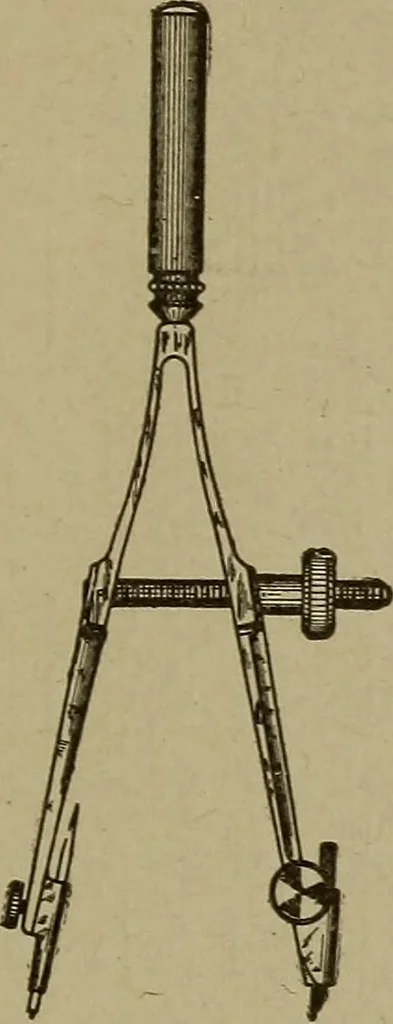

he needle, with the eye-end brokenLs fonvd into a handle of soft pine, making a con-venient instrument for marking line intersections anddistal 78 MECHANICAL DRAWING 13 Bow Pen and Bow Pencil. Ordinary large compasses are tooheavy and the leverage of the long leg is too great to allow small…
