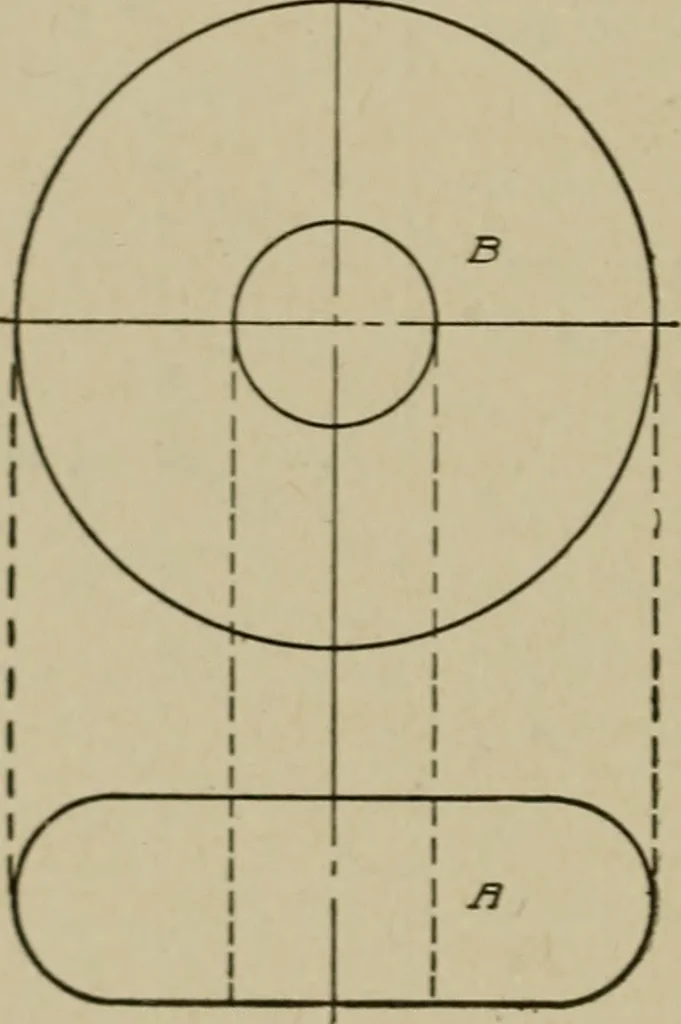

and the lengths between, may be shown in the front elevation A. From this view, only theforms of the cross-section could not be ascertained. Some mightbe square, some hexagonal, or some cir-cular, but the plan B shows that all arecircular. Summary. The principles of projec-tion which have been used…
