Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc (1919)
Fairfield, Howard Parker, 1858-, Kenison, Ervin, Waite, Edward B. (Edward Broughton), 1873-, American Technical Society · Chicago, American technical society · leaf 314

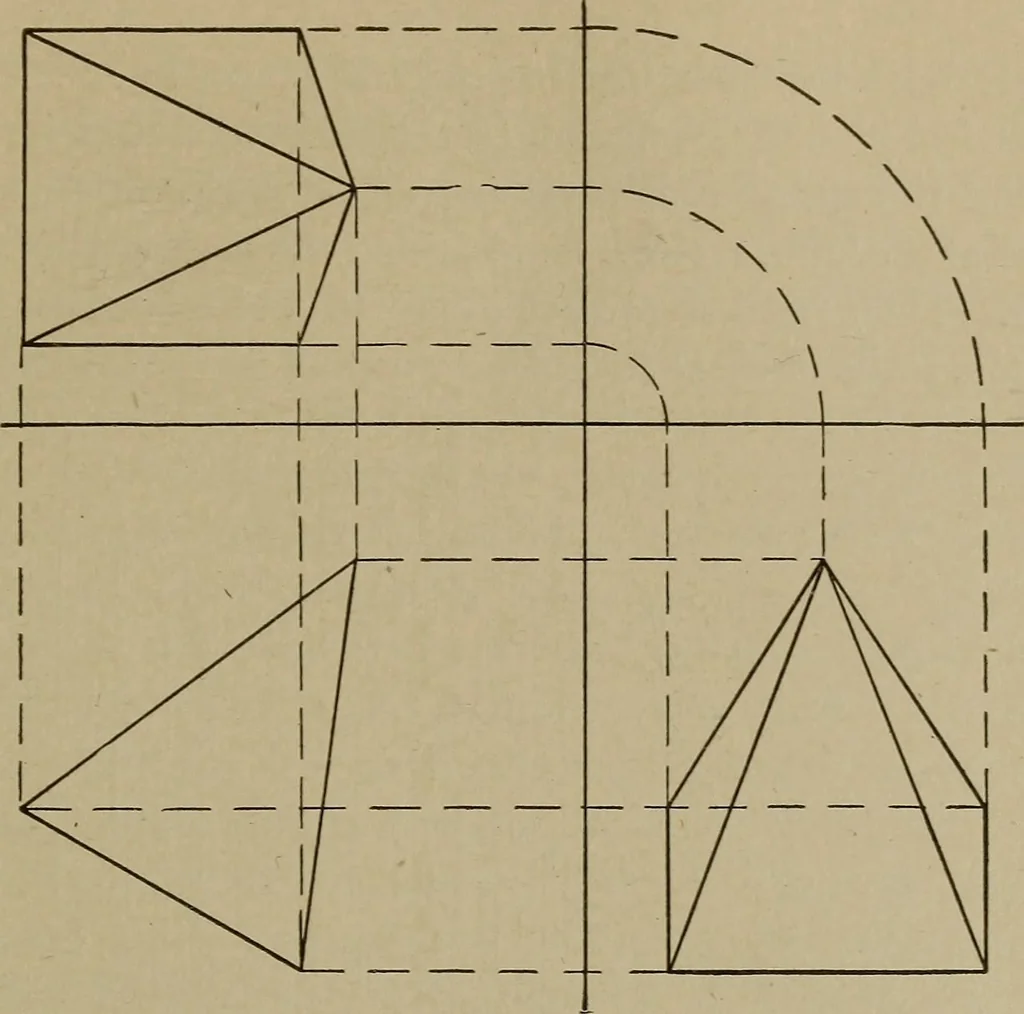

projecting across from the front view, and revolv-ing down from the plane at right angles to the horizontal and verticalplanes the points projected across from the top view. C)Under in Inclined Position to Horizontal Plane. As shownin Fig. 128, first draw the plan, a circle, at A. Then draw… … Fig. 127. Plan, Front, and Side Views after Revolving Pyramid in Fie l* through 30 Degrees with Horizontal Plane
Mechanical drawing · Blueprinting
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
